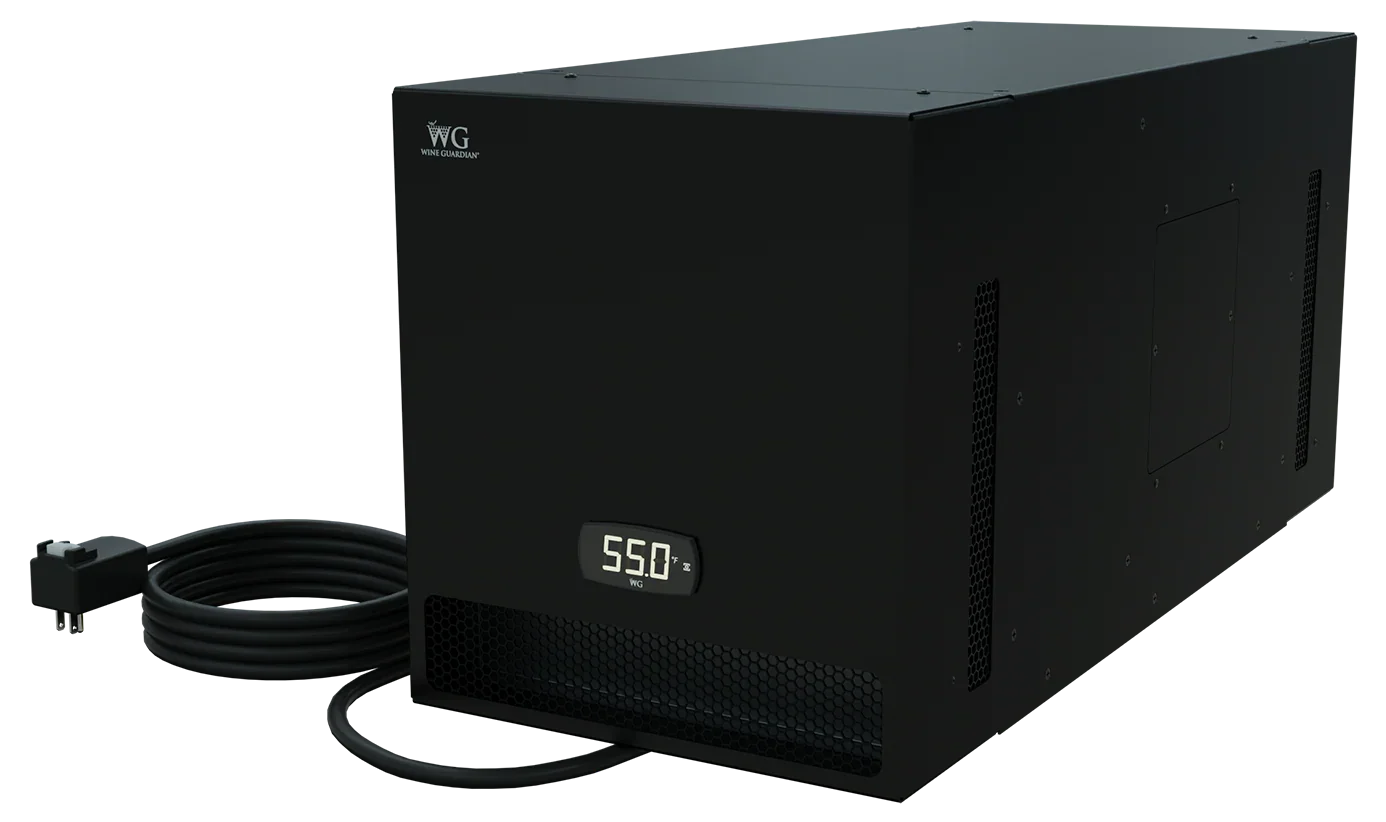

Wine Guardian TTW01B Defender Through-Wall Wine Cellar Cooling Unit
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarThe Wine Guardian Defender Series is a Through-the-Wall wine cooling unit rated for exterior wall installations. Its sound-attenuated design delivers quiet, efficient cooling while protecting your wine collection in any environment.
The TTW01B is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The maximum capacity of this unit is 1440 BTU/h.
Uses the standard USA Type B plug.
SKU: WGTTW01BE1LCD2A0BHF
Additional information
| Weight | 65 lbs |
|---|---|
| Dimensions | 33.8 × 14.1 × 15.8 in |
| Model |
TTW01B |
| Capacity |
1440 BTU/h @ 75 ºF (24 ºC). If you have different condensing side conditions, check our spec sheet for performance. |
| Line Frequency |
60 Hz |
| Ductless/Ducted |
Ductless |
| Where to Buy |
Distributor, Online |
| Plug Type |
Plug Type B |
| Installation Level |
Do-It-Yourself |
| Length |
33.8" |
| Width |
14.1" |
| Height |
15.75" |
| Weight |
65 lbs |
| Electrical |
120/1/60 |
| Notable Features |
Heater, Bluetooth / NFC Controls, Noise Reduction, Extended Temperature Control Range, Exterior-Rated Condenser |
| Sound |
47.9 dBA |
Built as a through-the-wall wine cellar cooling unit, the Wine Guardian TTW01B Defender houses its entire refrigeration system in one self-contained cabinet, eliminating the need for ductwork or a separate outdoor condenser. This makes it one of the more straightforward self-contained wine cooling unit choices for smaller cellars and wine rooms, where quiet, consistent operation matters as much as the wine itself. Homeowners searching for a through-the-wall wine cooling unit that balances performance with a simple installation footprint will find this configuration well suited to the task.
