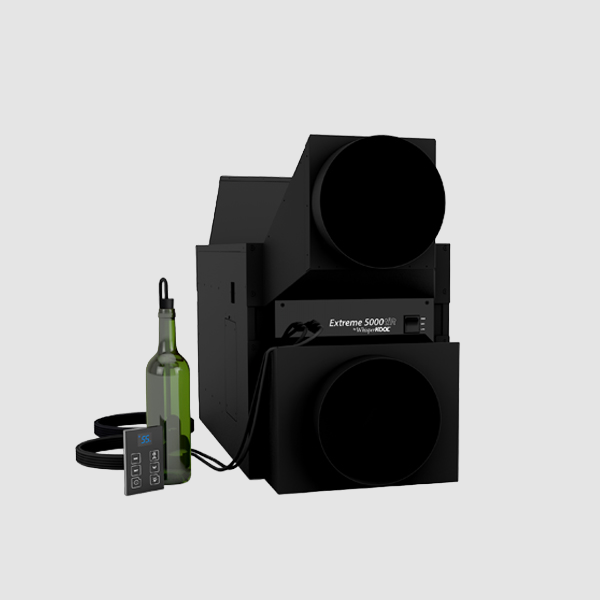

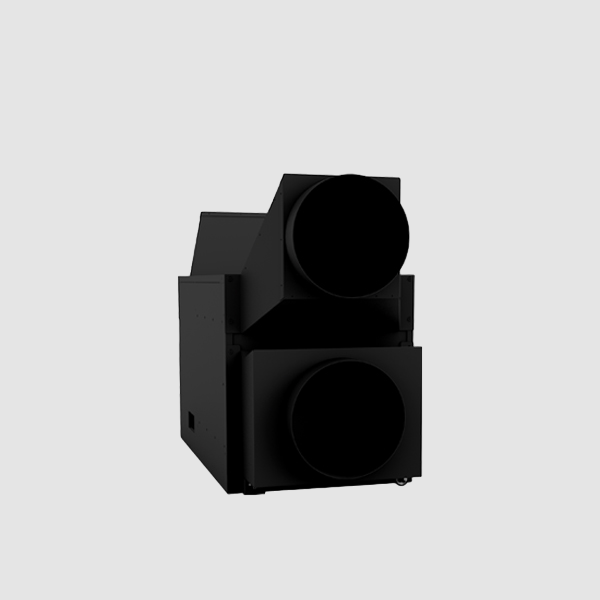

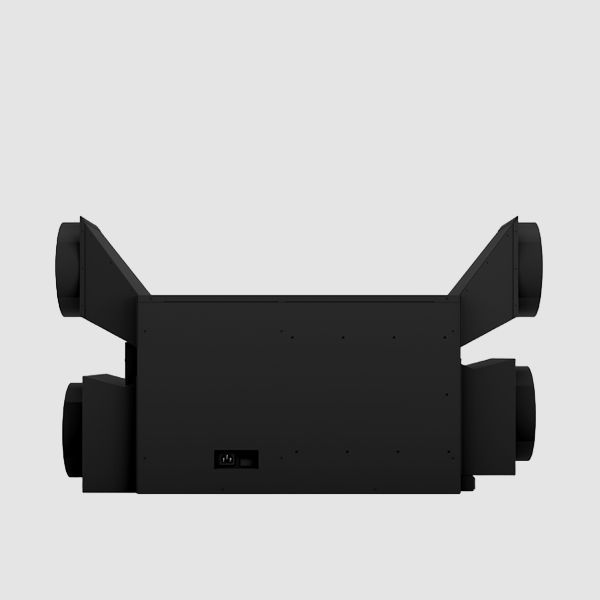

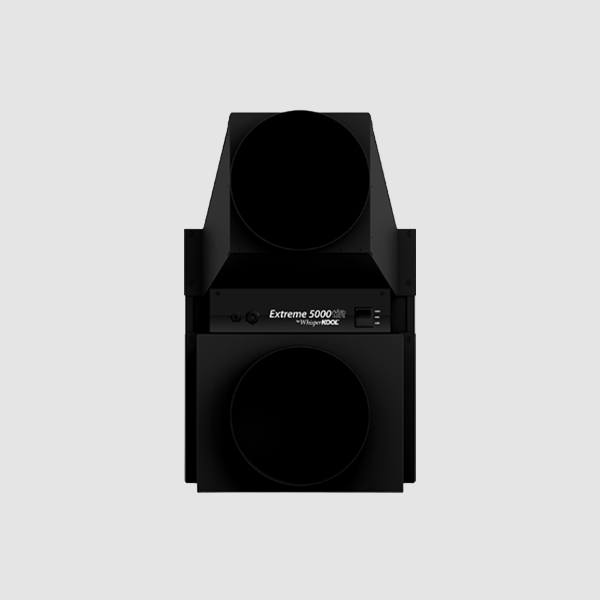

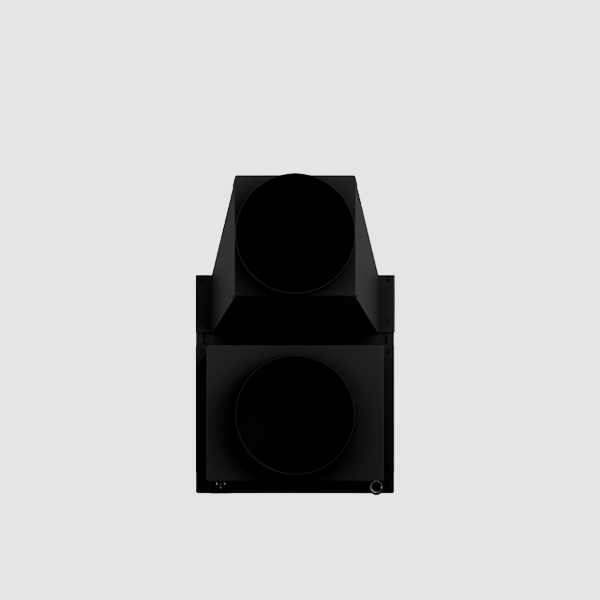

WHISPERKOOL 5000tiR Ducted Wine Cellar Cooling Unit – Up to 1,250 ft³

Engineered with over-sized coils and powerful ventilation system the WhisperKOOL® Extreme Series is designed to vent to the outside in hot and cold ambient climates. This fully-ducted unit can operate up to 25 ducted feet away (creating a noise-free wine cellar) in 110°F conditions and maintain a 55°F temperature differential between the wine cellar and the exhaust environment (interior or exterior).

The Extreme Series 5000tiR Ducted model has a cooling capacity of 1000 cubic feet.

• Fully Ducted / Stand Alone

• Cooling Capacity of 1250 ft3

• 39.5”L x 22.5”H x 14.25”W

• 115 lbs

• 115V (20 amp dedicated circuit required); 230V (subject to availability)

• No licensed HVAC professional required

• Quiet cellar environment

• Liquid-temperature-measuring bottle probe

• Drain line is required

• Can vent to outdoors

• Max differential between cellar & exhaust 55°F

• Maximum outdoor temperature of 110°F

• Remote sensor option

• Digital interface

• Power cord

Part #U-WKEX-115-FD-4

More information from WhisperKOOL Extreme Series

Download WHISPERKOOL 5000tiR Ducted Cooling Unit Owner Manual.

Download the WHISPERKOOL 5000tiR Ducted Cooling Unit Owner Manual (W/ 24V Thermostat

As a ducted wine cellar cooling unit, the WHISPERKOOL 5000tiR Ducted separates the condensing unit from the evaporator, routing conditioned air through ductwork so cooling stays even from corner to corner in wine rooms up to 1,250 ft³. This split system wine cooler approach is a common choice when the cellar's layout or size rules out a self-contained unit, letting installers place the compressor well away from the wine itself. It's engineered for collectors who need a ducted split wine cellar cooling unit capable of serious thermal load management.
