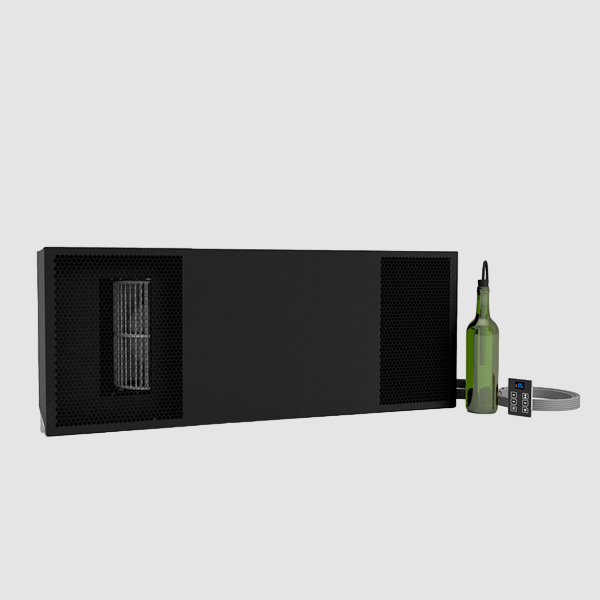

WHISPERKOOL Ceiling Mount 4000 Wine Cellar Cooling Unit – 1,000 ft³

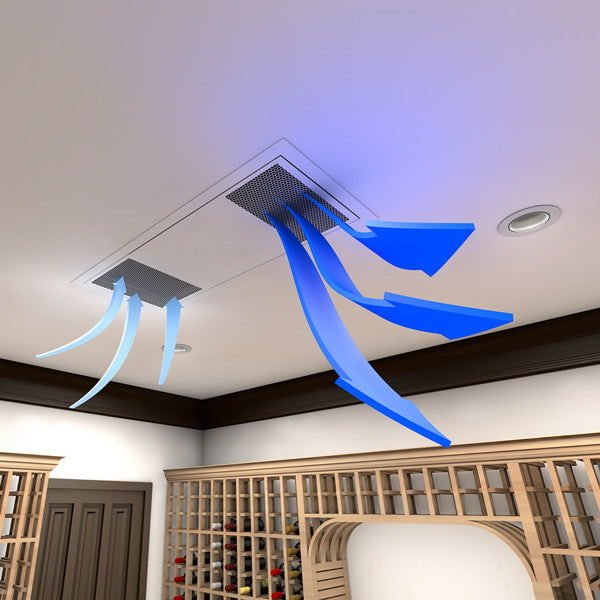

The WhisperKOOL® ceiling mounted evaporator has many benefits: It offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cools and disperses the air throughout the environment, allows for maximum racking space, and is virtually invisible in the cellar. Designed with the highest quality, professional grade parts for longevity and performance, it also offers ease of installation and accessibility.

The Ceiling Mount 4000 split system has a cooling capacity of 1000 cubic feet.

• Split System (Not Ducted)
• Cooling Capacity of 1000 ft3
• Evaporator 35.75”L x 12.75”H x 14.5”W
• Condenser 16.08”L x 16.23”W x 12.61”H
• Evaporator 80 lbs
• Condenser 65 lbs
• 110v/60Hz dedicated circuit breaker required
• Hard Wired
• Installation requires a licensed HVAC professional
• Drain line is required
• Condenser line up to 100ft
• Max differential between condenser & evaporator 55°F
• Digital interface

Part #S-WKCM4000

Note: a line set is not included.

Please click below to view all product specifications for the Ceiling Mount 4000 cooling system.

Download the WHISPERKOOL Ceiling Mount 4000 Cooling Unit Owner Manual.

Designed to install flush against the cellar ceiling, the WhisperKOOL Ceiling Mount 4000 is a ceiling-mounted wine cellar cooling unit that draws in and returns air directly to the room, with no ductwork required. This ductless wine cooling unit configuration frees up wall space entirely, for cellars up to 1,000 ft³, making it a favored option for glass-enclosed or architecturally visible wine cellars where a through-the-wall or ducted system would disrupt the design. As a compact ceiling mounted wine cellar cooling unit, it still delivers the precise thermal and humidity control needed to protect a serious wine collection year-round.
