WHISPERKOOL Platinum Split 4000 Ducted Wine Cellar Cooling Unit – 1,000 ft³
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarWhisperKOOL Platinum Split 4000 Ducted Cooling Unit

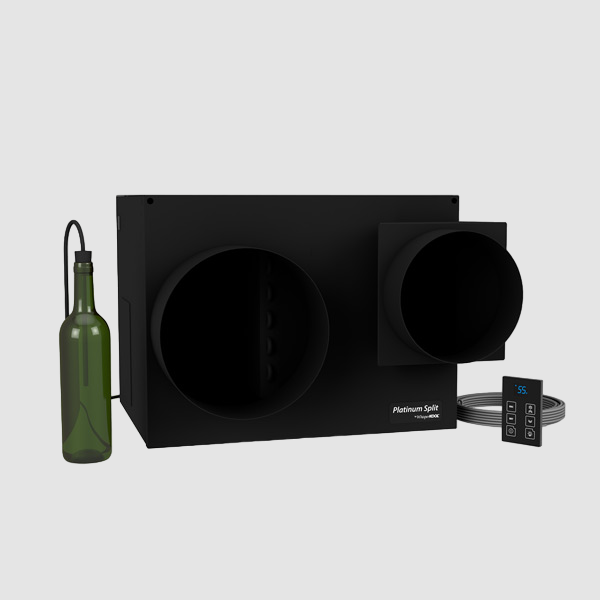

The Platinum Split 4000 establishes a new benchmark for split systems, providing a ducted cooling unit solution that ensures a virtually silent cellar environment. By utilizing a ducted configuration, this system removes mechanical noise from the storage area and offers maximum architectural installation flexibility. The redesigned evaporator is more compact than previous models while delivering improved airflow efficiency and quieter operation, making it ideal for high-fidelity luxury wine rooms.
Master-Level Engineering & Protection
Advanced System Protection: Features a Platinum Series controller with strategically placed monitoring probes to guarantee efficient performance and an extended service life.
Acoustic Mastery: Designed for near-silent operation by separating the mechanical components from the cellar through remote ducting.
Thermal Precision: Engineered with a cooling capacity of 1000 ft³, providing a stable and precise thermal envelope for mid-to-large scale collections.
Placement Versatility: The system supports evaporator ducting up to 25 feet and a condenser line set of up to 100 feet, allowing for discreet equipment placement.
Technical Specifications
| Feature | Specification |
| Cooling Capacity | 1000 ft³ |
| System Type | Split System (Ducted) |
| Installation | Required: Licensed HVAC Professional |
| Dimensions (Evap) | 20.5″W x 15.5″H x 14.5″D |
| Dimensions (Cond) | 12″W x 13.5″H x 18″D |
| Max Differential | 55°F between Condenser & Evaporator |
Installation & Technical Requirements
To ensure the system meets the highest performance standards, the Platinum Split 4000 requires specific technical integration:
Professional Setup: A licensed HVAC professional is required for installation due to the technical nature of split-system components.
Infrastructure: Requires a dedicated 110v/60Hz circuit breaker and must be hard-wired for a permanent, reliable power supply.
Condensate Management: A dedicated drain line is required for the unit to function correctly.
Note: A line set is not included and must be selected to fit the specific architectural requirements of your installation.
View WHISPERKOOL Platinum Split 4000 Ducted Cooling Unit Product Specifications.
Download the WHISPERKOOL Platinum Split 4000 Ducted Cooling Unit 110V Owner Manual.

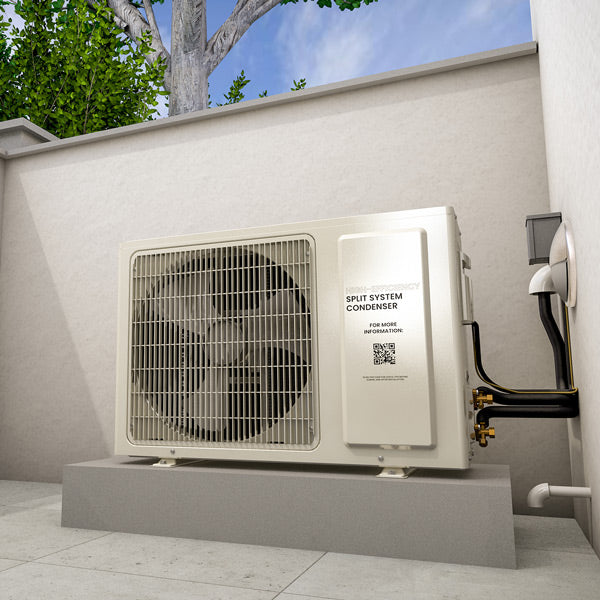

Unlike a self-contained cabinet, the Platinum Split 4000 Ducted separates the components: the condenser sits remotely while a ducted air handler distributes cooling and humidity control through ductwork sized for rooms up to 1,000 ft³. That split-system layout is worth considering when a through-the-wall or ceiling-mount unit won't fit the room's architecture, giving installers more flexibility in where the equipment actually lives.
