WHISPERKOOL Platinum Split 8000 Ducted Wine Cellar Cooling Unit – 1,750 ft³
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarWhisperKOOL Platinum Split 8000 Ducted Cooling Unit

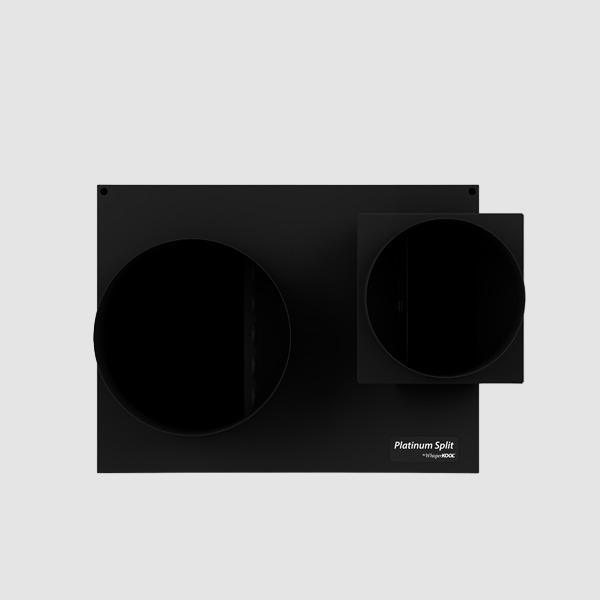

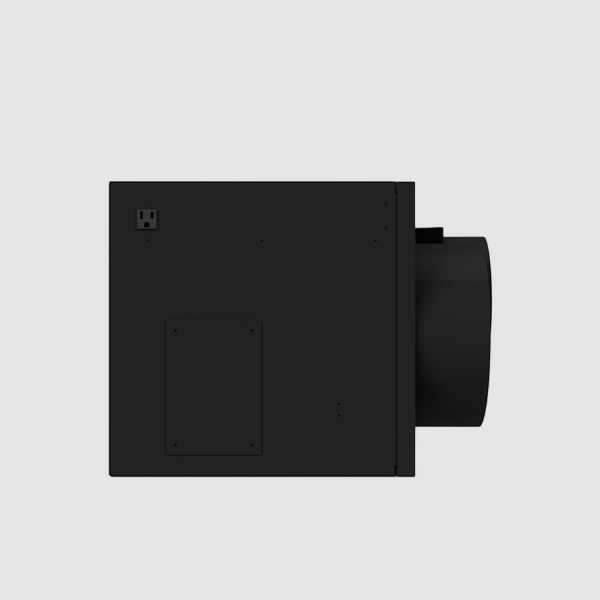

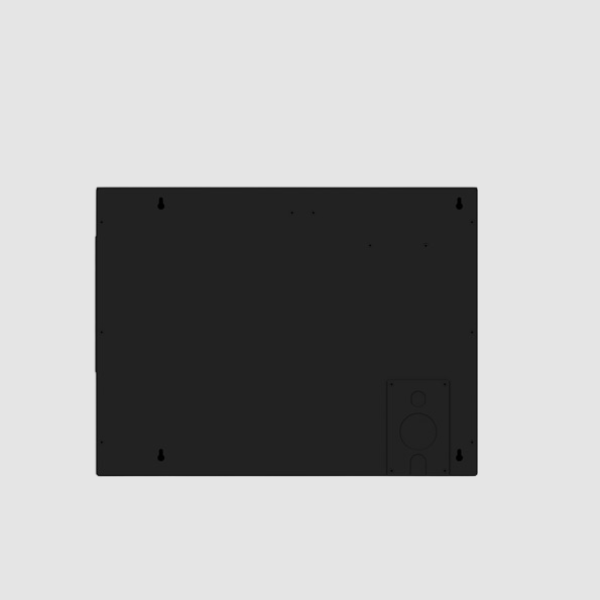

The Platinum Split 8000 sets a new architectural standard for high-capacity climate control, offering a ducted cooling unit solution that achieves a virtually silent cellar environment. By separating the evaporator from the condenser and utilizing remote ducting, this system removes mechanical noise and bulk from the cellar itself. The redesigned evaporator is more compact than previous generations while simultaneously improving airflow efficiency, making it the premier choice for sleek, high-fidelity luxury wine rooms.
Master-Level Engineering & Protection
-

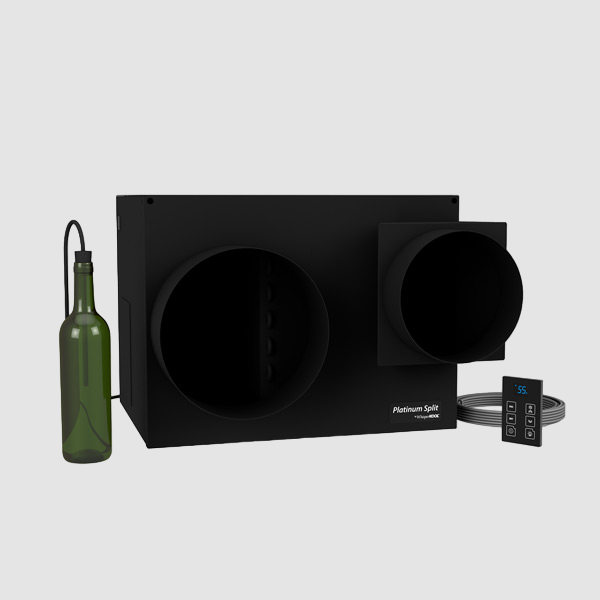

Advanced System Protection: Equipped with a Platinum Series controller that utilizes strategically placed monitoring probes to ensure peak performance and system longevity.
-
Acoustic Mastery: The ducted configuration allows the mechanical components to be tucked away, delivering a whisper-quiet storage environment that does not disrupt the ambiance of your home.
-
Thermal Precision: Engineered with a cooling capacity of 1750 ft³, providing a robust and stable thermal envelope for large-scale collections.
-
Architectural Flexibility: The evaporator can be ducted up to 25 feet from the cellar, while the condenser line set can span up to 100 feet, offering unparalleled placement options.
Technical Specifications
| Feature | Specification |
| Cooling Capacity | 1750 ft³ |
| System Type | Split System (Ducted) |
| Installation | Required: Licensed HVAC Professional |
| Dimensions (Evap) | 20.5″W x 15.5″H x 14.5″D |

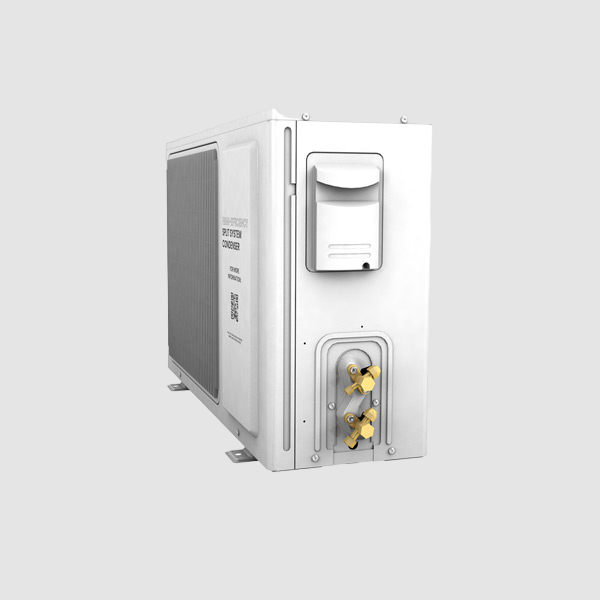

| Dimensions (Cond) | 12″W x 13.5″H x 18″D |
| Max Differential | 55°F between Condenser & Evaporator |
Installation & Technical Requirements
To maintain the Master Atelier standard of performance, this ducted cooling unit requires specific technical integration:
-
Professional Setup: Due to the complexity of split-system mechanics, installation must be performed by a licensed HVAC-R professional.
-
Infrastructure: Requires a dedicated 115V circuit breaker and is designed to be hard-wired for a permanent, reliable connection.
-
Drainage: A dedicated drain line is required for condensate management.
-
Note: A line set is not included and must be sourced to fit the specific requirements of your architectural layout.
View WHISPERKOOL Platinum Split 8000 Ducted Cooling Unit Product Specifications.
Download the WHISPERKOOL Platinum Split 8000 Ducted Cooling Unit 110V Owner Manual.
Download the WHISPERKOOL Platinum Split 8000 Ducted Cooling Unit 220V H.E. Owner Manual.
The WHISPERKOOL Platinum Split 8000 Ducted is a ducted, split-system wine cellar cooling unit: the compressor and condenser install remotely while a ducted evaporator distributes conditioned air evenly through supply and return ductwork. This split-system wine cooler configuration is well suited to larger or architecturally complex wine rooms up to 1,750 ft³, where a self-contained wine cooling unit isn't practical, since the noisiest components sit outside the tasting or storage space entirely. As a dedicated ducted wine cellar cooling unit, it gives builders and collectors a flexible way to hold precise temperature and humidity across a demanding cellar design.
