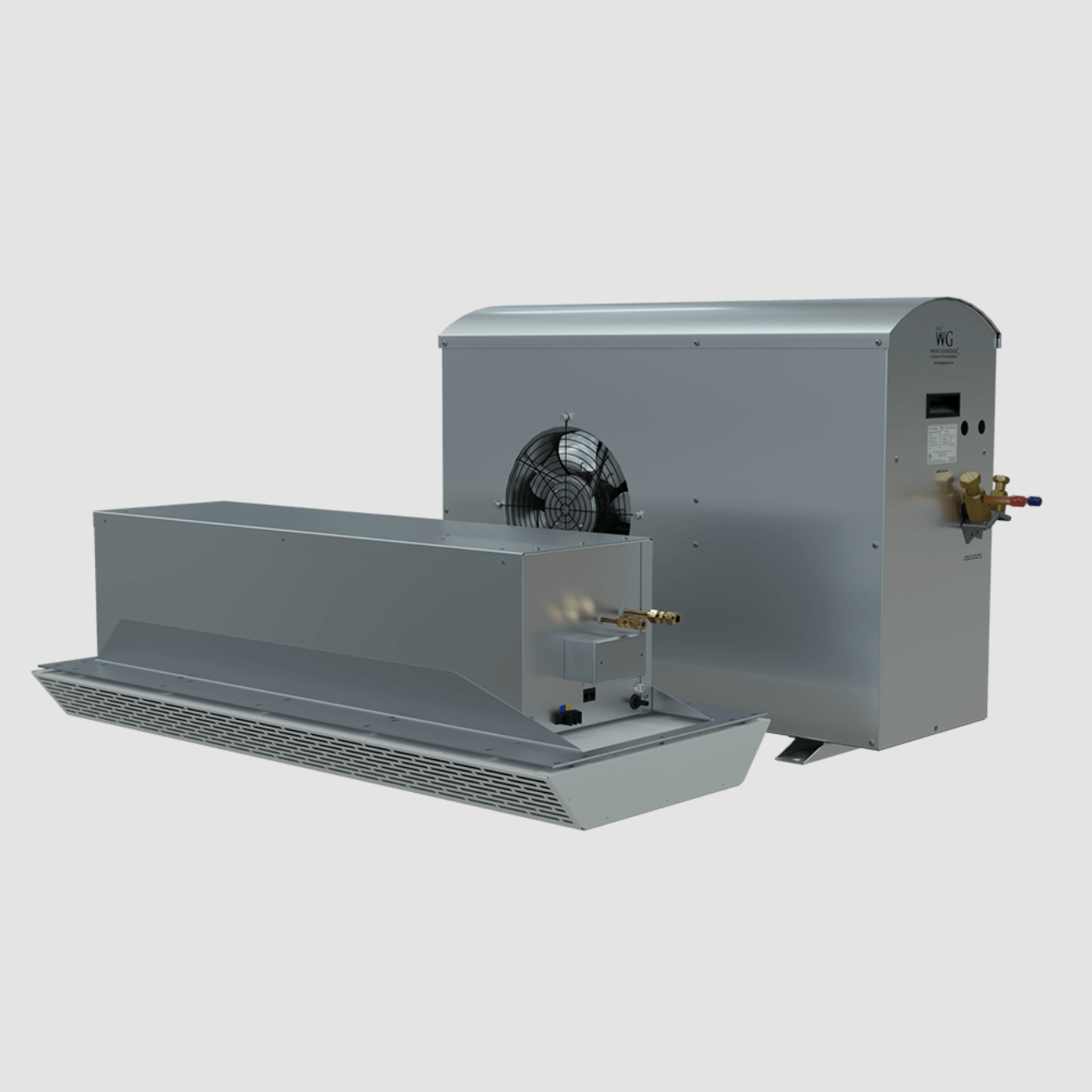

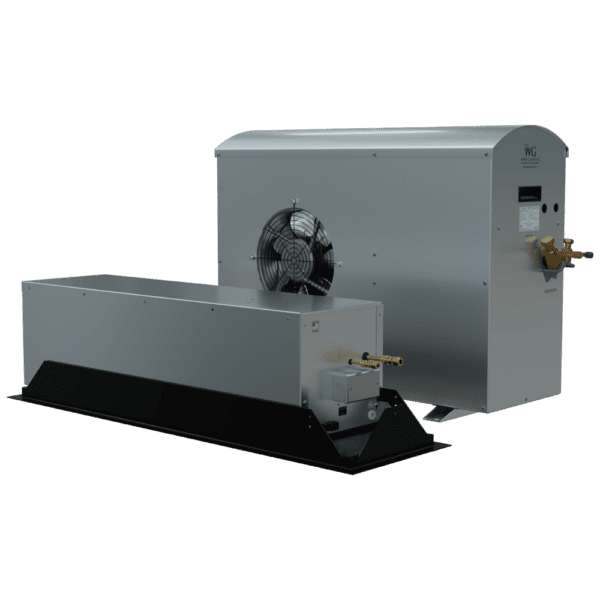

Wine Guardian CS025 Ceiling Mounted Wine Cellar Cooling Unit
The CS025 Ceiling Mount Wine Room Cooling Unit, a silent, split wine conditioning system perfect for small to mid-sized wine rooms and wine walls where traditional units cannot be installed. Designed for ceiling mounting, it seamlessly fits between standard joist constructions, making it an excellent choice for wine storage displays surrounded by living spaces or all-glass wine rooms. With a maximum capacity of 2,900 BTU/H, the CS025 ensures optimal cooling for your prized collection.
Product Details:
| Model | CS025 (Ceiling Mounted) |
CS025 (Wine Wall)
|
| Line Frequency | 60 Hz | 60 Hz |
| Capacity | 400 – 2755 BTU | 400 – 2755 BTU |
| Volume | 100 – 1200 ft³ | 100 – 1200 ft³ |
| Length | 43.25" (evaporator) 34" (condenser) |
44.19" (evaporator)
34" (condenser) |
| Width | 18.25" (evaporator) 12.3" (condenser) |
12.44" (evaporator)
12.3" (condenser) |
| Height | 13.25" (evaporator) 26" (condenser) |
11.43" (evaporator)
26" (condenser) |
| Weight | 48 lbs (evaporator) 75 lbs (condenser) |
43 lbs
75 lbs (condenser) |
| Electrical | 115/1/60 208-230/1/60 (condenser) |
115/1/60
208-230/1/60 (condenser) |
Features:
Wine Guardian® wine cellar cooling units are commercial grade, ceiling mounted coolers for novice or professional wine collectors. These cooling systems are the most installation-friendly and versatile wine cellar cooling units on the market. Many of these features are unique to Wine Guardian and not found in any other type of cooling unit:
- Paintable grille to match the decor in your wine cellar
- Certified to Underwriters Laboratory standards

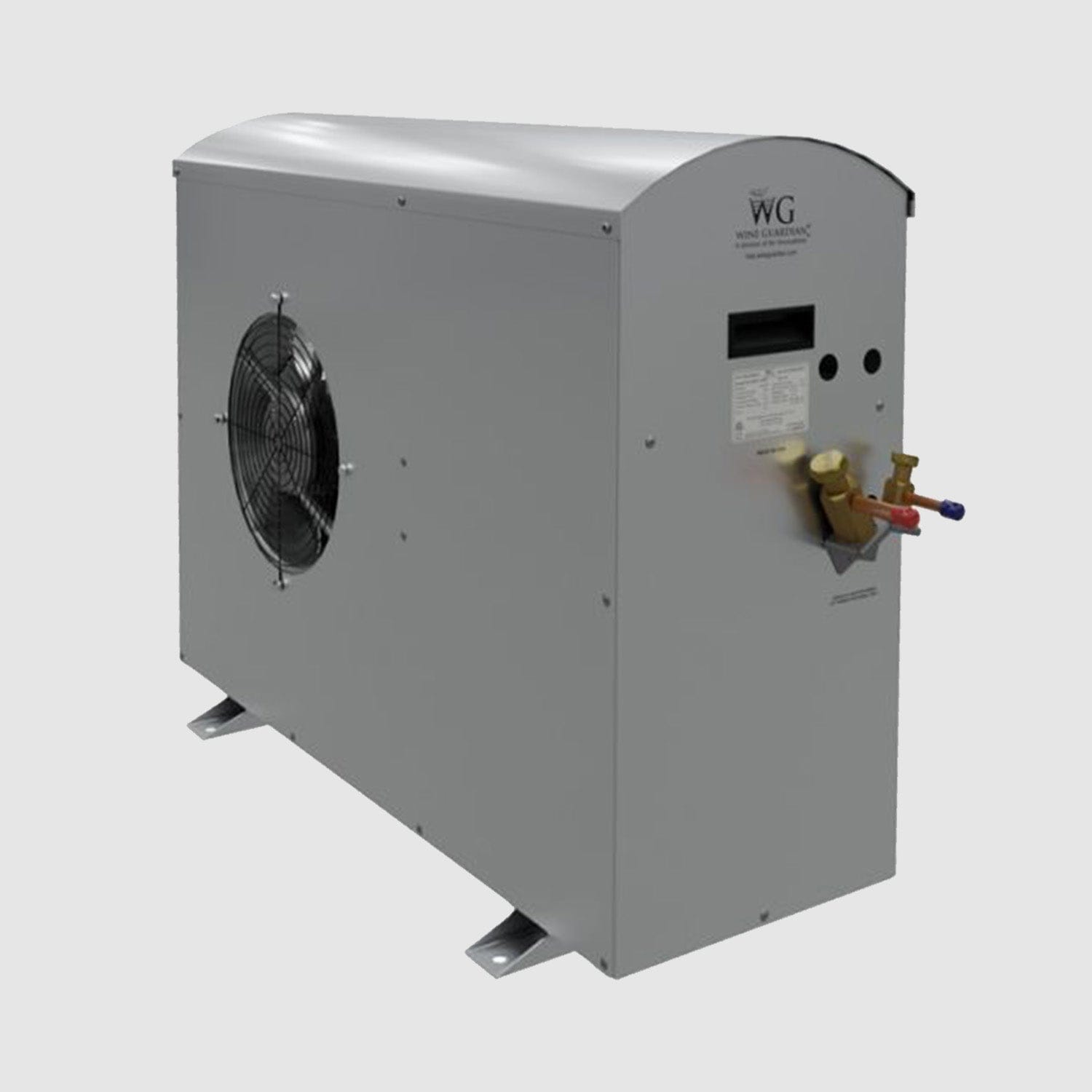

- Split condensing unit keeps cellar quieter
- Recycles warm stale air near the ceiling

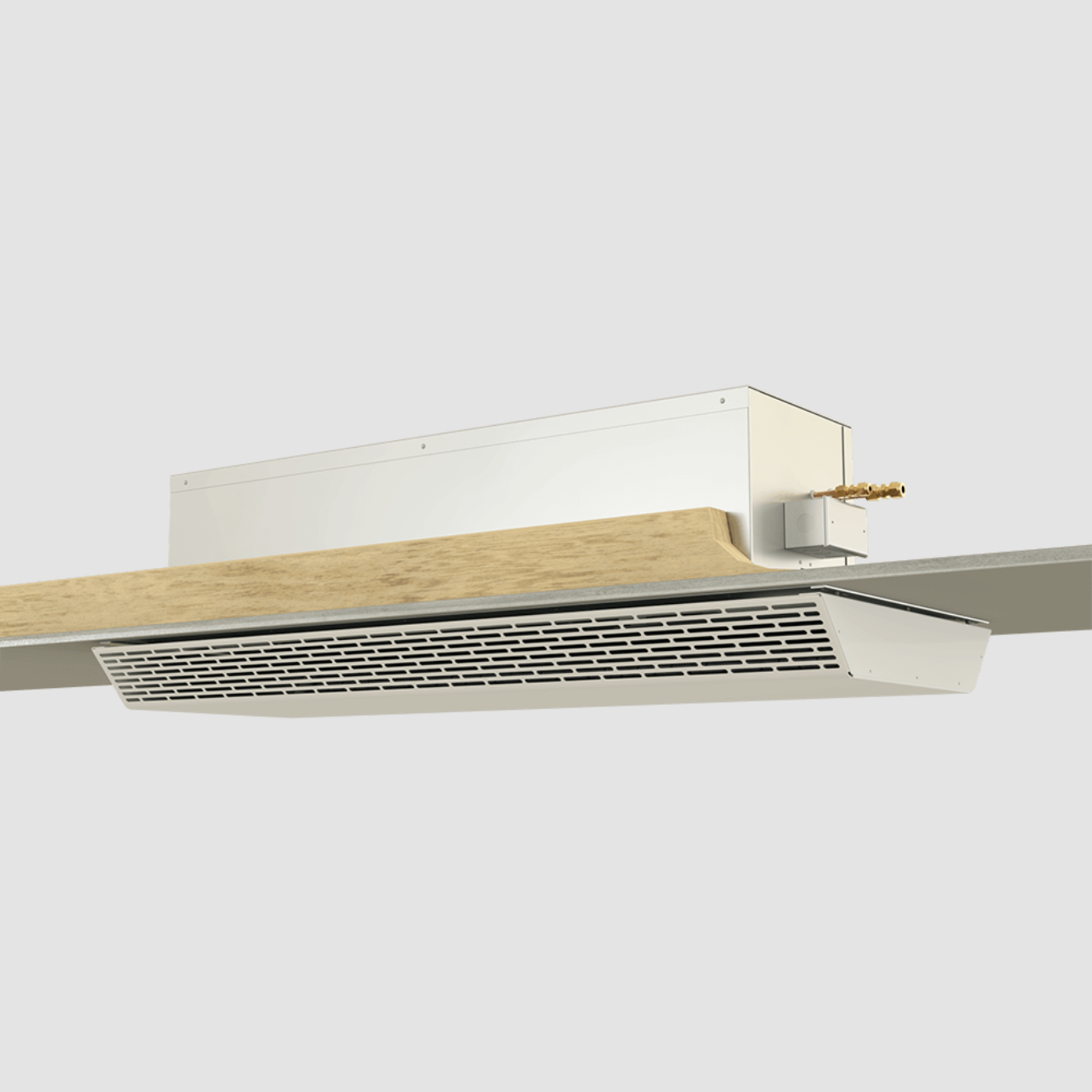

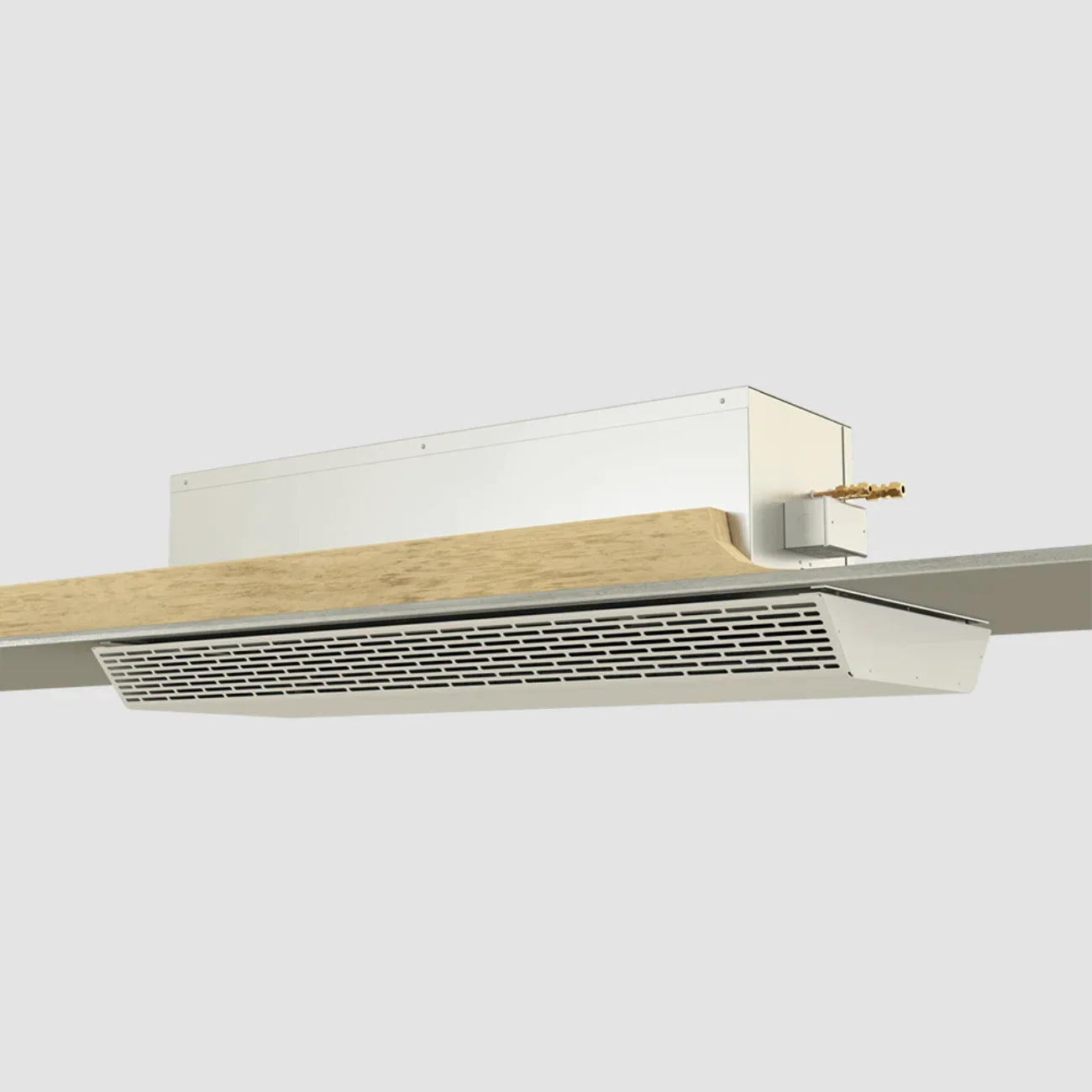

- Easy to install in between ceiling studs
- Specialized fans create ideal airflow
- Extremely quiet operation
- Controls temperature

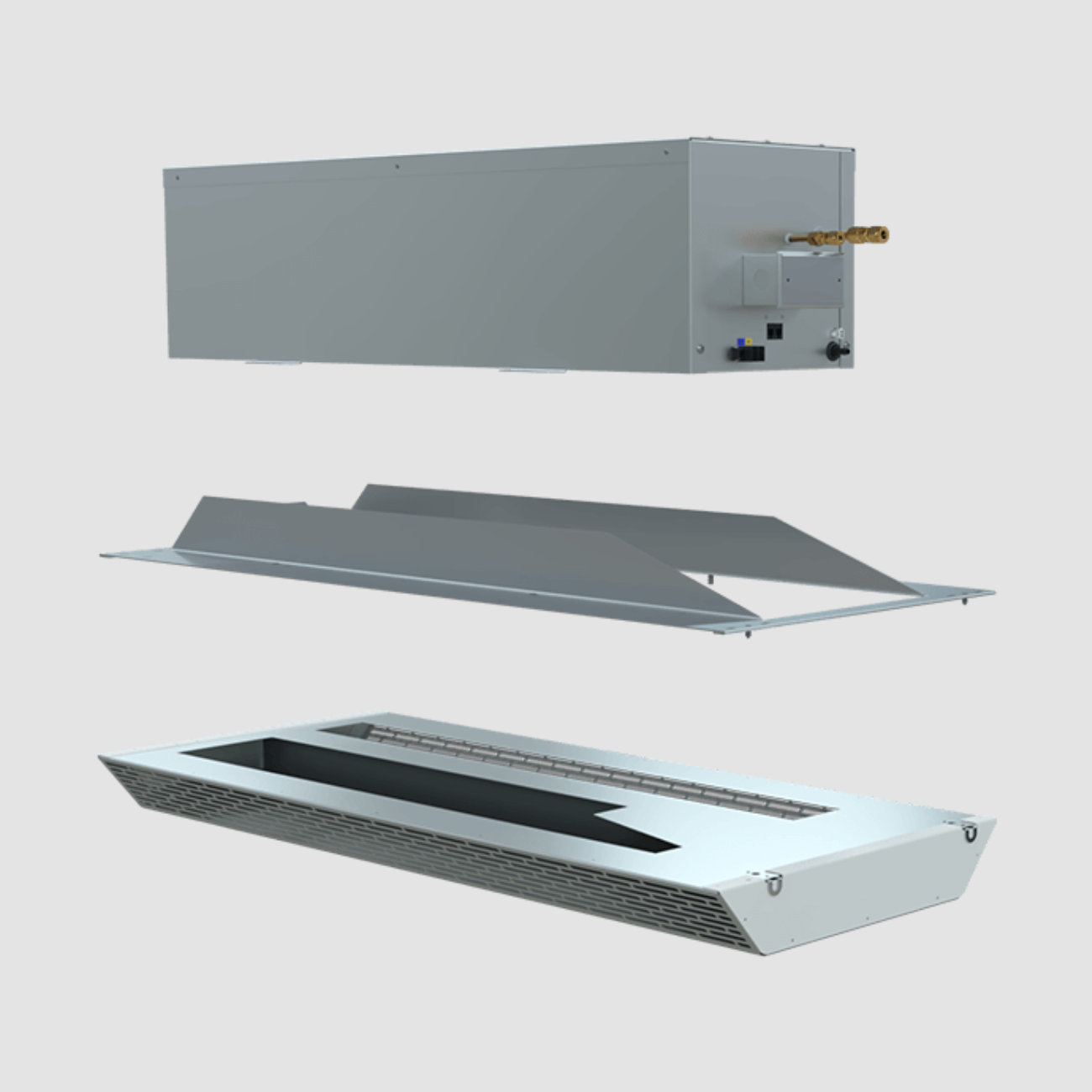

- Steel mounting flange for 12 or 16 inch gaps
- Can heat/cool or cool depending on unit chosen
- Outdoor enclosure included
- Made in the USA
Upgrade Options:
1. Electric Heat
Wine Guardian’s electric heat option protects your wine cellar from cold ambient temperatures that dip below the recommended wine storage thresholds.
2. Extreme Low Ambient Protection
This cold weather protection package allows the condensing unit to operate in conditions down to -20°F (-29°C) and is recommended in climates where the temperature normally drops to 20°F (-7°C).
3. A Platinum Warranty Option is Available
Two (2) years parts, one (1) year labor, plus three (3) year extension on compressor, evaporator coil, and condenser coil (parts only).
