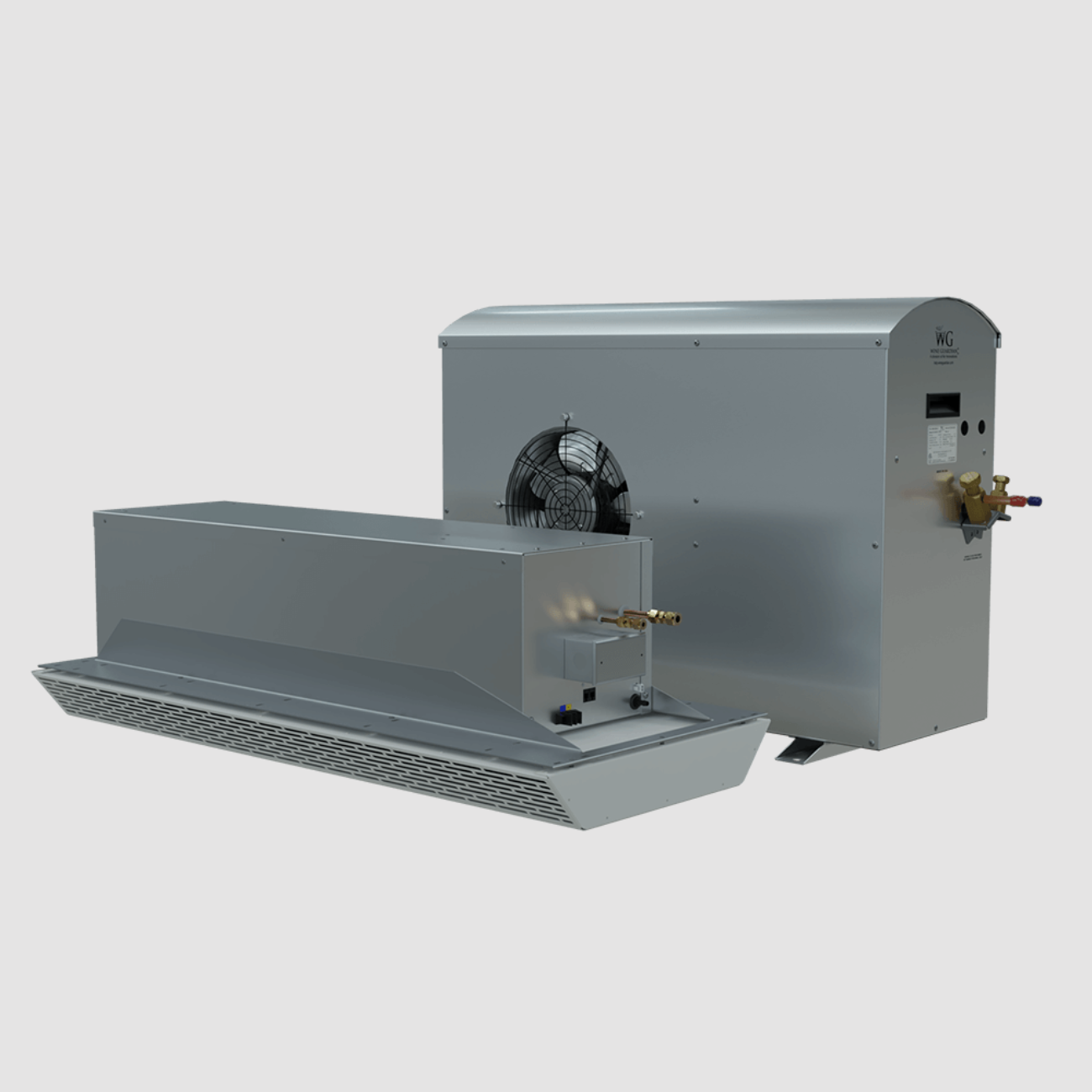

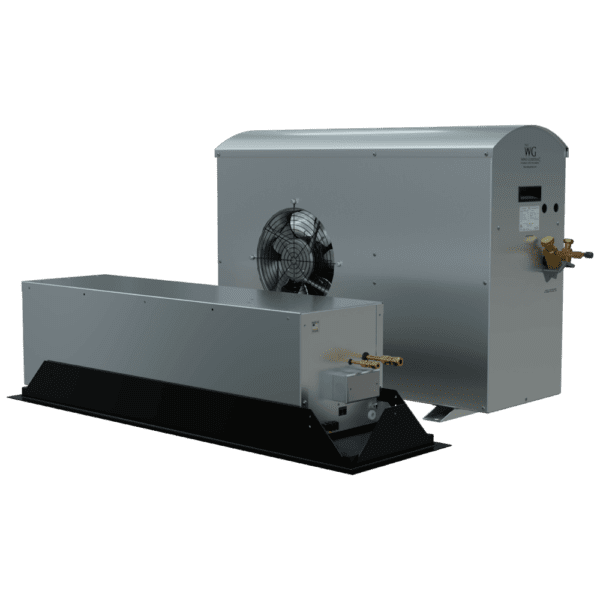

Wine Guardian CS050 Ceiling Mounted Wine Cellar Cooling Unit
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarThe Wine Guardian CS050 ceiling-mounted wine cooling unit, perfect for small to mid-sized wine rooms and wine walls where traditional units just won't fit. This innovative split system is designed for modern applications, including all-glass wine storage spaces, and seamlessly integrates within standard joist construction. With a maximum capacity of 4,300 BTU/H, it ensures optimal temperature control for your exquisite wine collection.
Product Details:
|
Model
|
CS050 (Ceiling Mounted)
|
CS050 (Wine Wall)
|
|
Line Frequency
|
60 Hz
|
60 Hz
|
|
Capacity
|
1000 – 4050 BTU
|
1000- 4050 BTU
|
|
Volume
|
250 – 2200 ft³
|
250 – 2200 ft³
|
|
Length
|
43.25" (evaporator)
34" (condenser) |
44.19" (evaporator)
34" (condenser) |
|
Width
|
18.125" (evaporator)
12.3" (condenser) |
12.44" (evaporator)
12.3" (condenser) |
|
Height
|
13.25" (evaporator)
26" (condenser) |
11.43" (evaporator)
26" (condenser) |
|
Weight
|
48 lbs
76 lbs (condenser) |
43 lbs
75 lbs (condenser) |
|
Electrical
|
115/1/60
208-230/1/60 (condenser) |
115/1/60
208-230/1/60 (condenser) |
Features:
Wine Guardian® wine cellar cooling units are commercial grade, ceiling mounted coolers for novice or professional wine collectors. These cooling systems are the most installation-friendly and versatile wine cellar cooling units on the market. Many of these features are unique to Wine Guardian and not found in any other type of cooling unit:
Upgrade Options:
1. Electric Heat
Wine Guardian’s electric heat option protects your wine cellar from cold ambient temperatures that dip below the recommended wine storage thresholds.
2. Extreme Low Ambient Protection
This cold weather protection package allows the condensing unit to operate in conditions down to -20°F (-29°C) and is recommended in climates where the temperature normally drops to 20°F (-7°C).
3. A Platinum Warranty Option is Available
Two (2) years parts, one (1) year labor, plus three (3) year extension on compressor, evaporator coil, and condenser coil (parts only).
- Paintable grille to match the decor in your wine cellar
- Certified to Underwriters Laboratory standards

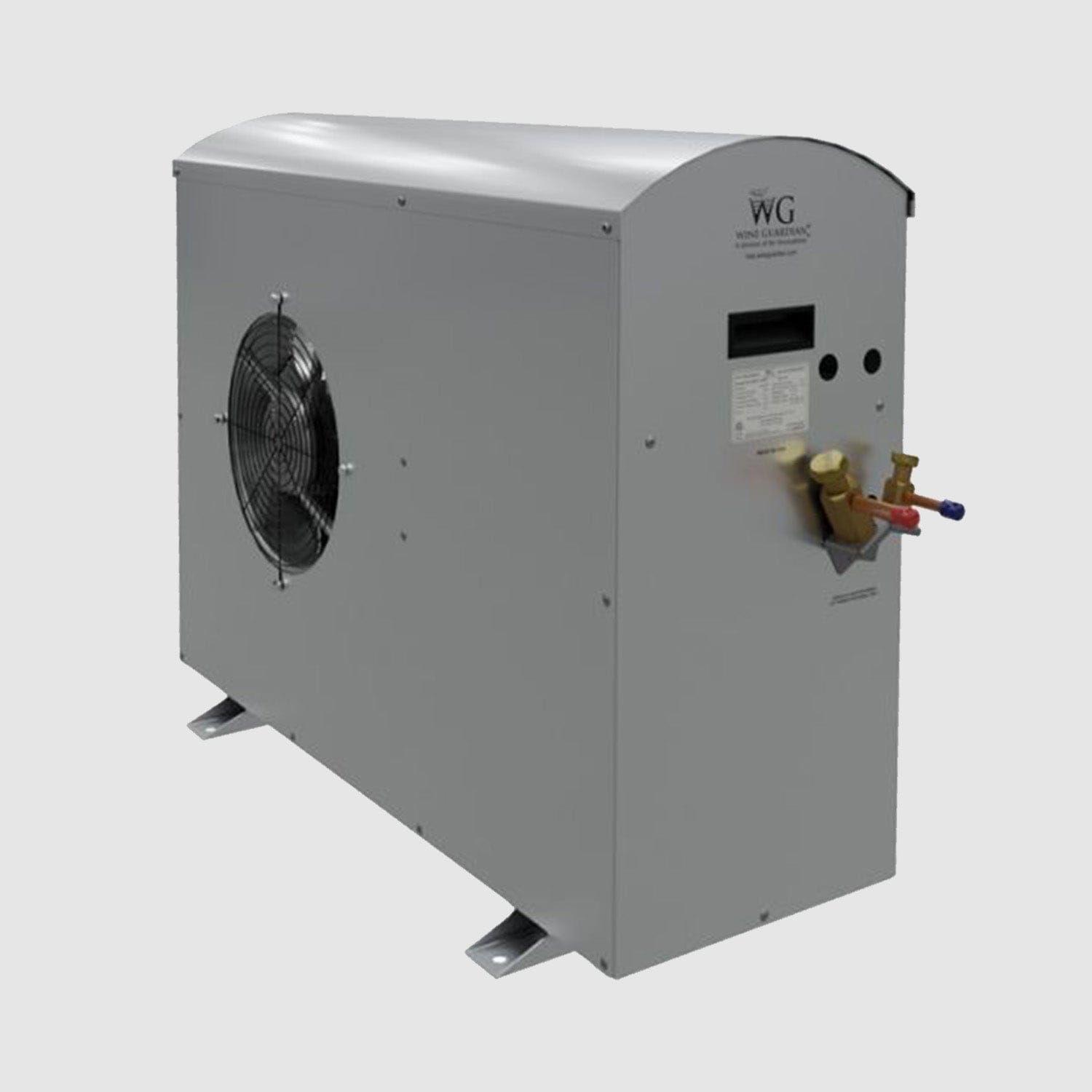

- Split condensing unit keeps cellar quieter
- Recycles warm stale air near the ceiling.
- Easy to install in between ceiling studs
- Specialized fans create ideal airflow
- Extremely quiet operation
- Controls temperature
- Steel mounting flange for 12 or 16 inch gaps
- Can heat/cool or cool depending on unit chosen
- Outdoor enclosure included
- Made in the USA
Documents and Resources:

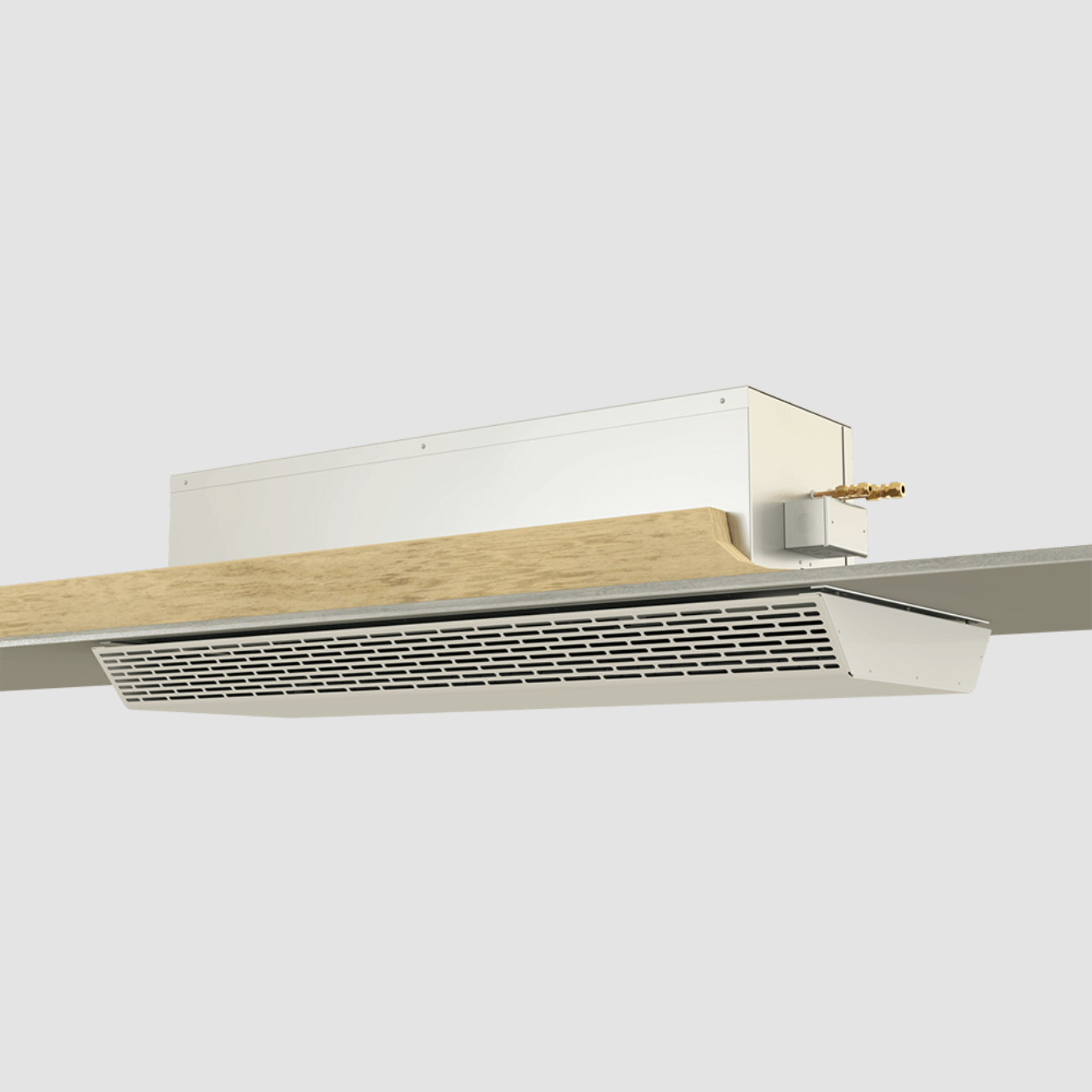

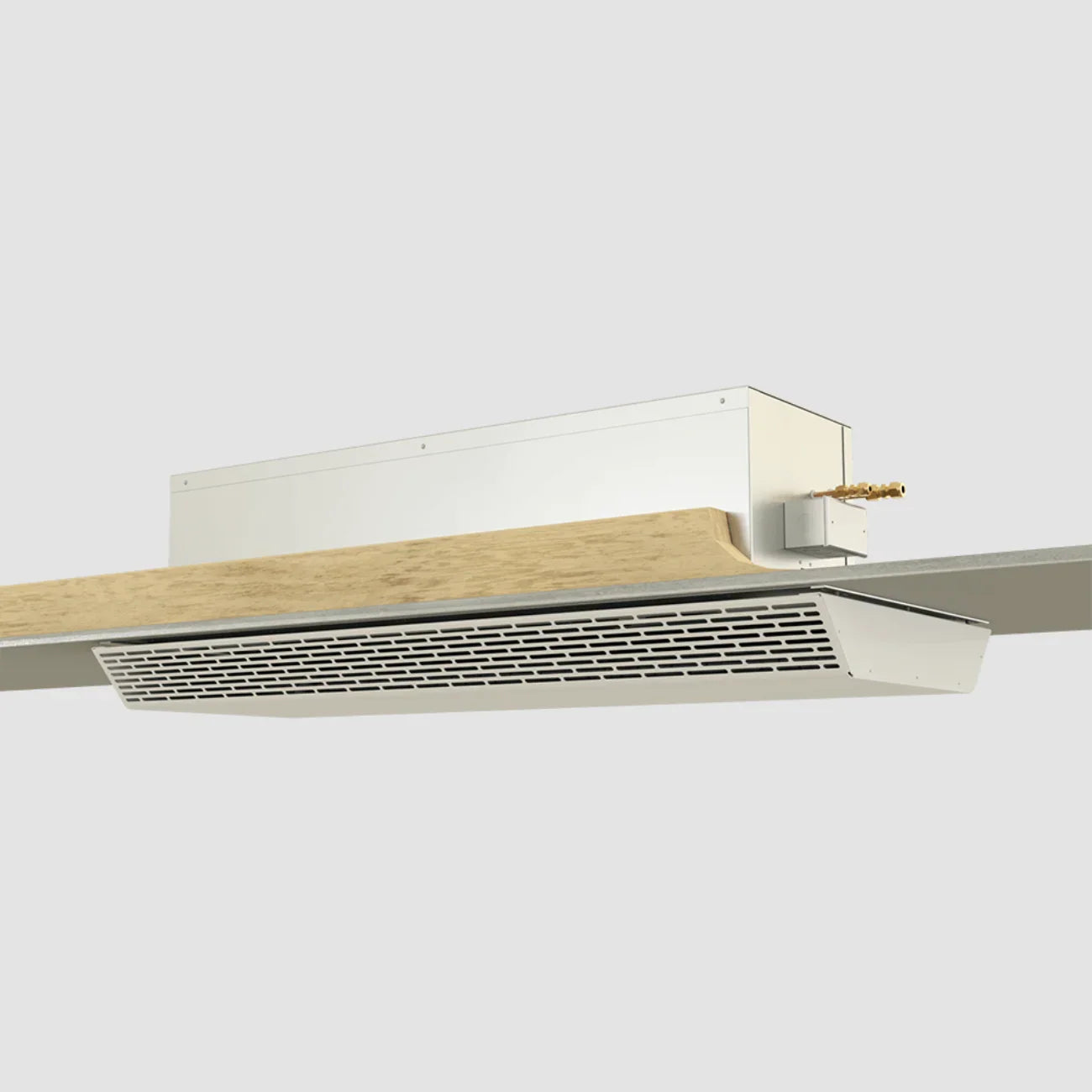

Designed to install flush against the cellar ceiling, the Wine Guardian CS050 is a ceiling-mounted wine cellar cooling unit that draws in and returns air directly to the room, with no ductwork required. This ductless wine cooling unit configuration frees up wall space entirely, for cellars up to 2,200 ft³, making it a favored option for glass-enclosed or architecturally visible wine cellars where a through-the-wall or ducted system would disrupt the design. As a compact ceiling mounted wine cellar cooling unit, it still delivers the precise thermal and humidity control needed to protect a serious wine collection year-round.
