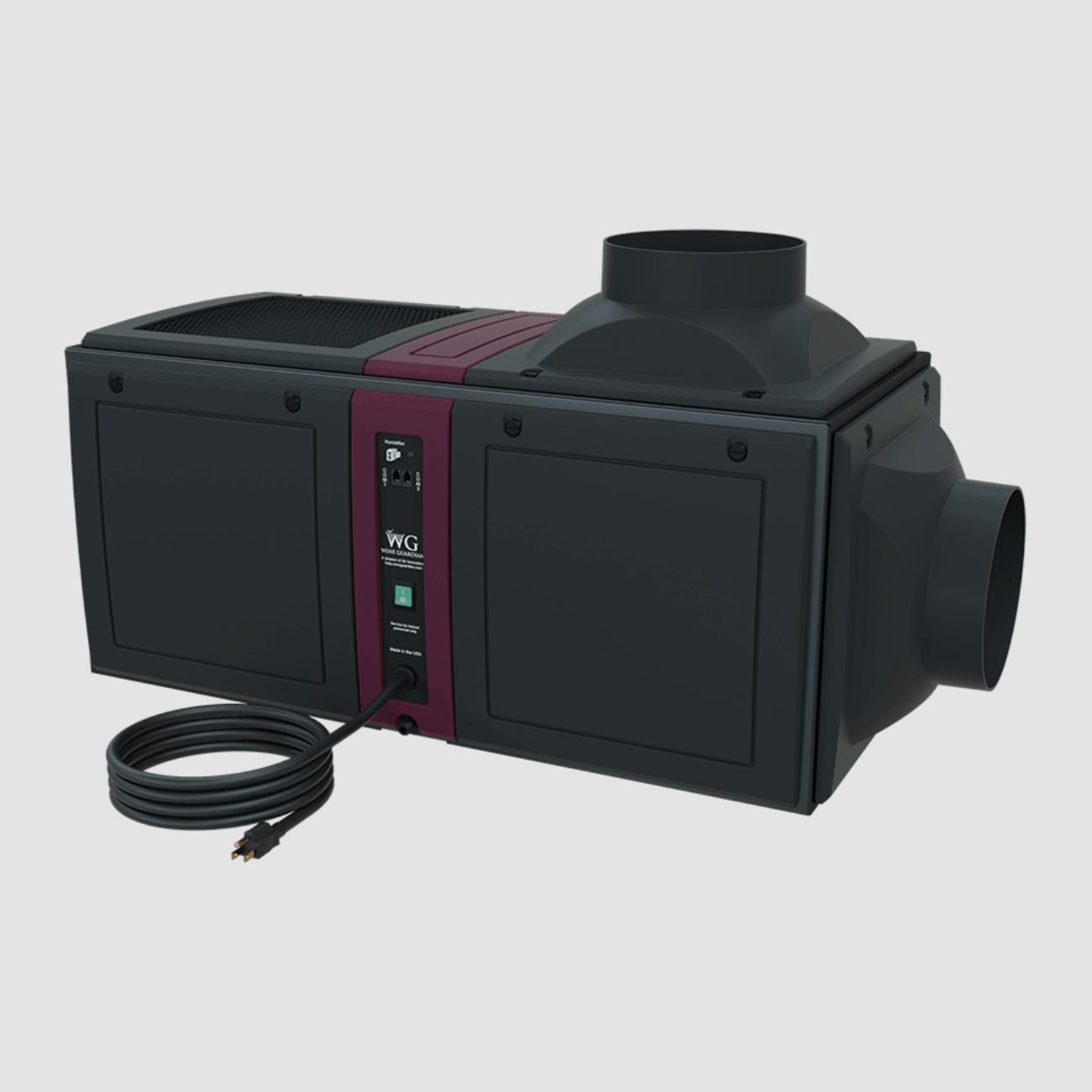

Wine Guardian D025 Ducted Wine Cellar Cooling Unit – Up to 2000 ft³

The D025 is a ducted wine cellar cooling unit for small residential and commercial wine cellars. These units can be placed outside the cellar, so the system can cool the space while remaining unseen and unheard. Versatile and self-contained Wine Guardian ducted cooling systems have been engineered for maximum flexibility in design and installation.The D025 wine cellar cooling unit comes with many options and accessories (Please select the configuration from the drop-down menu).

Product Details:

• Fully Ducted Cooling Unit - these complete systems include the evaporator, fans, compressor, condenser, and controls in one unit

• Cooling Capacity of 2000 ft3 (1/4 Ton)

• Contractor installation is recommended.

• 110v/60Hz dedicated circuit breaker required ( is standard in most of North America (incl. USA & Canada)

• Capacity 1000 – 3760 BTU

• Drain line is required

• 1 Supply & 1 Return collar included

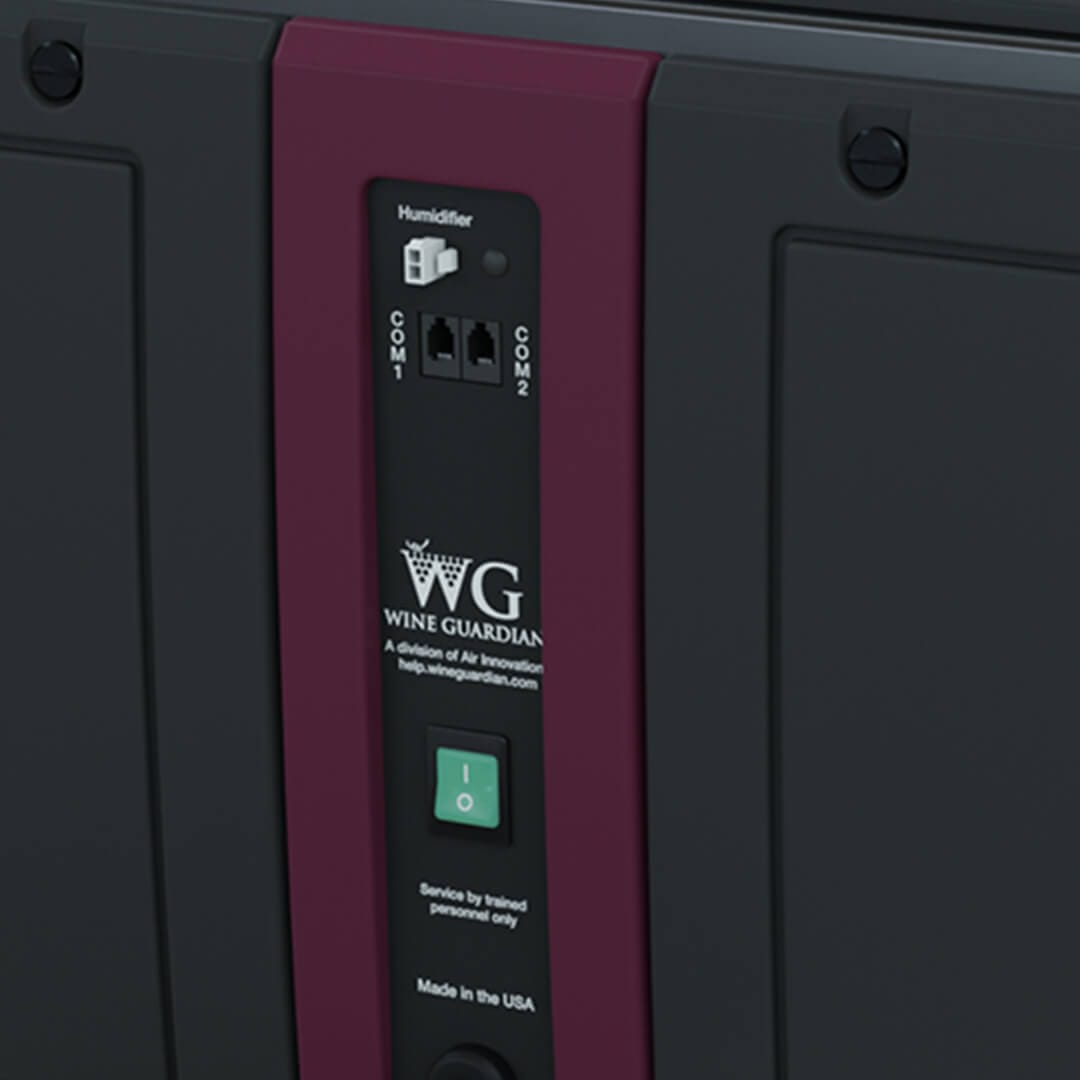

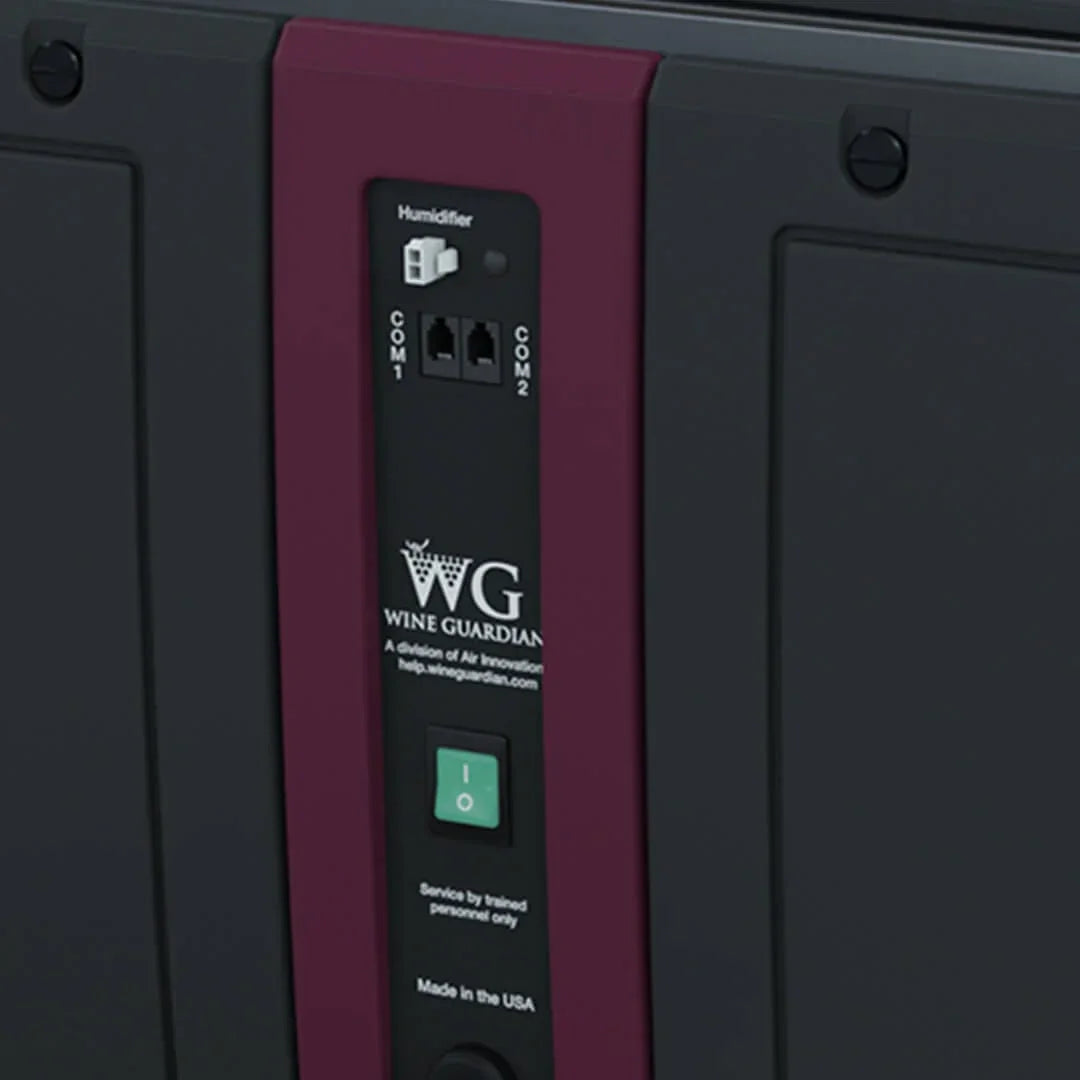

• Digital interface

• Aluminum chassis and coated coils for corrosion resistance

• Multi-Panel design for installation flexibility

• Sleek and modern look to compliment any wine cellar design

• Power cord included

• Versatile with a wide range of accessories for enhanced functionality



Product Measurements:

• 33″W x 14″H x 14″D

• 80 lbs

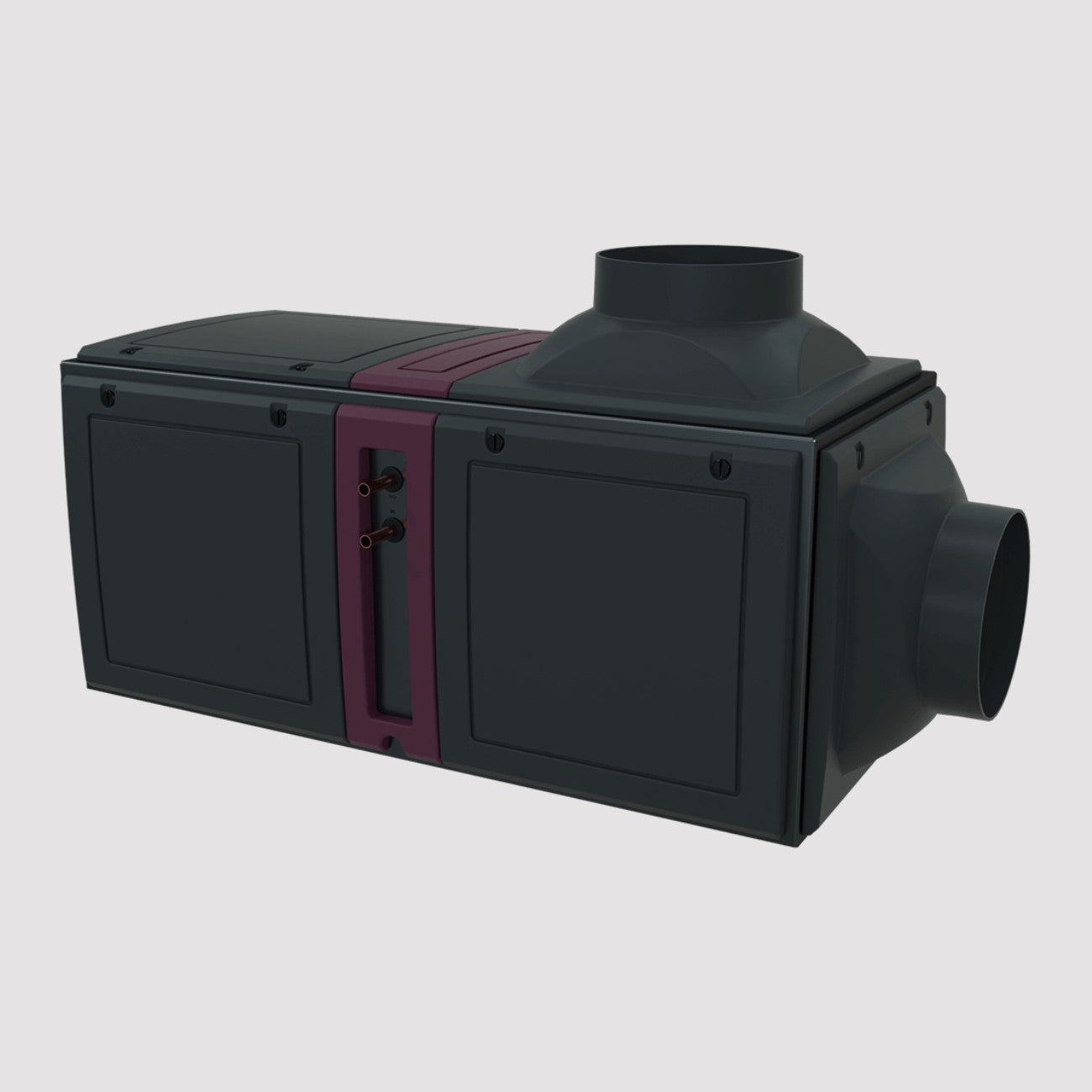

The Wine Guardian D025 wine cellar cooling unit is also available in a water-cooled configuration.

A Platinum Warranty Option is Available

This includes coverage for the compressor, evaporator coil, and condenser coil.

Read more about the cooling unit warranty

Documents and Resources:

• Sentinel Series Ducted Self-Contained Product Brochure

• Sentinel Series Ducted Self-Contained Manual

• Sentinel Series Ducted Self-Contained Quick Start Installation Guide (Multi-Language)

• Sentinel Series Ducted Self-Contained Specifications Sheet
