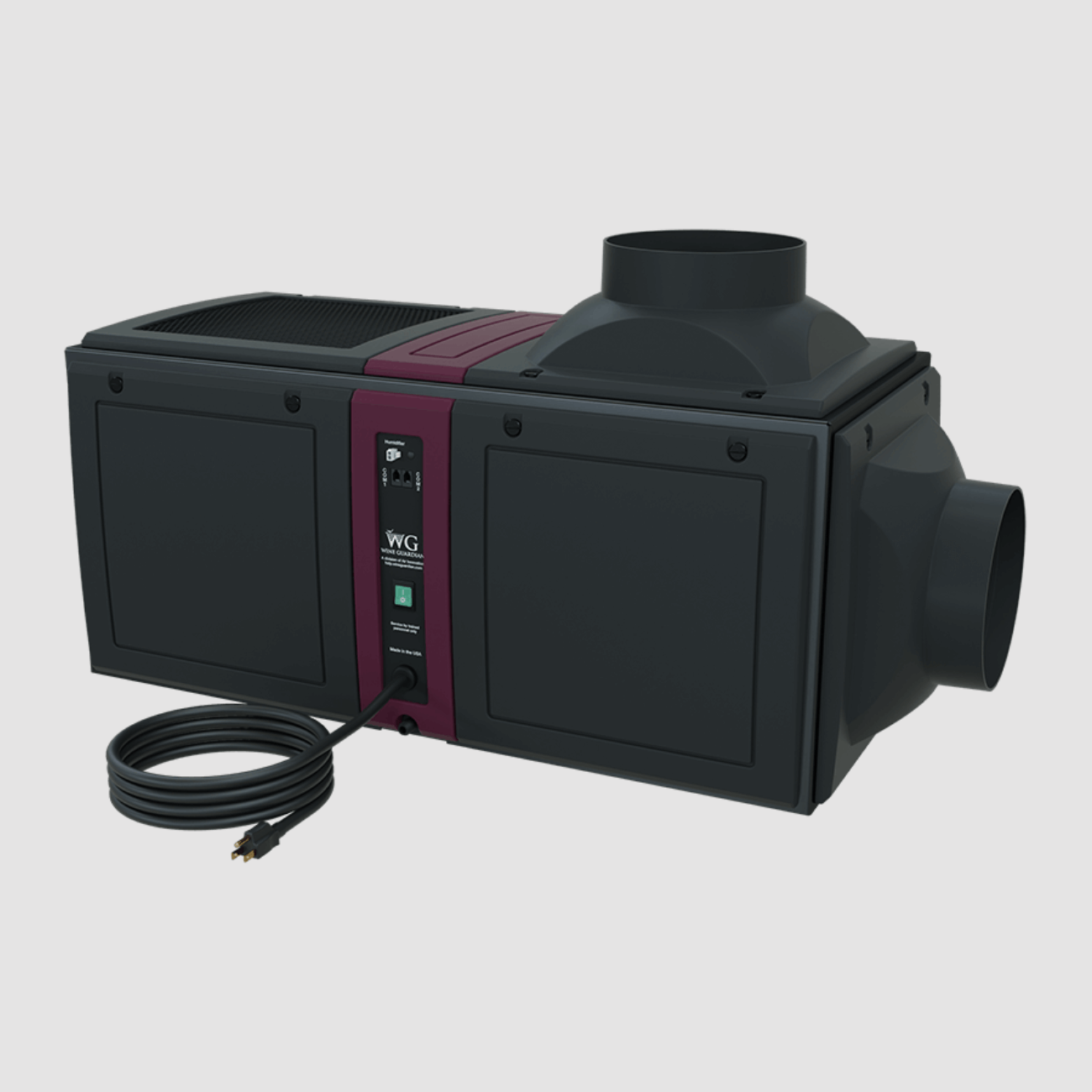

WINE GUARDIAN D025WC - DUCTED WATER COOLED UNIT- 60 HZ

The D025WC, a premier water-cooled ducted cooling system, is expertly designed for small residential and commercial wine cellars, ensuring an optimal preservation environment for your collection. With a robust capacity of 3,384 BTU/h (0.97 Kilowatts), the D025WC maintains precise temperature control, essential for the delicate balance of wine storage.

Designed for flexibility, it accommodates inlet water temperatures between 45°F (7°C) and 85°F (29°C) and features high-static pressure fans for extended ductwork options. The water-cooled design eliminates the need for heat exhaust while requiring a constant water supply, making it an efficient choice for maintaining the perfect wine storage environment.

Product Details:

• Through-the-Wall Unit

• Fully insulated cabinet and duct collars for protection in the most demanding environments

• Innovative multipanel design with integral fasteners

• Quiet operation

• Have a maximum cooling capacity of 3,384 BTU/h (0.97 Kilowatts).

• 110v/60Hz dedicated circuit breaker required (standard in most of North America, inc. USA & Canada)

• A year-round water source required

• Two lines are required for the water-cooled units (water in/out).

• Professional contractor installation is recommended

• Cooling unit does not require warm condenser air connections

• Adaptable with the All Wine Temperatures bundle including a factory-mounted heater and extended controls

• Versatile with a wide range of accessories for enhanced functionality

Product Measurements:

• 16.6"W x 15.56"H x 33.45"L

• 78 lbs

Note: If you plan to use the domestic water supply, it is recommended that you first consult with your local authority to ensure that there are no intervening water-use restrictions.

A Platinum Warranty Option is Available

This includes coverage for the compressor, evaporator coil, and condenser coil.

Read more about the cooling unit warranty

Documents and Resources:

• Sentinel Series Ducted Self-Contained Product Brochure

• Sentinel Series Ducted Self-Contained Manual

• Sentinel Series Ducted Self-Contained Quick Start Installation Guide (Multi-Language)

• Sentinel Series Ducted Self-Contained Specifications Sheet
