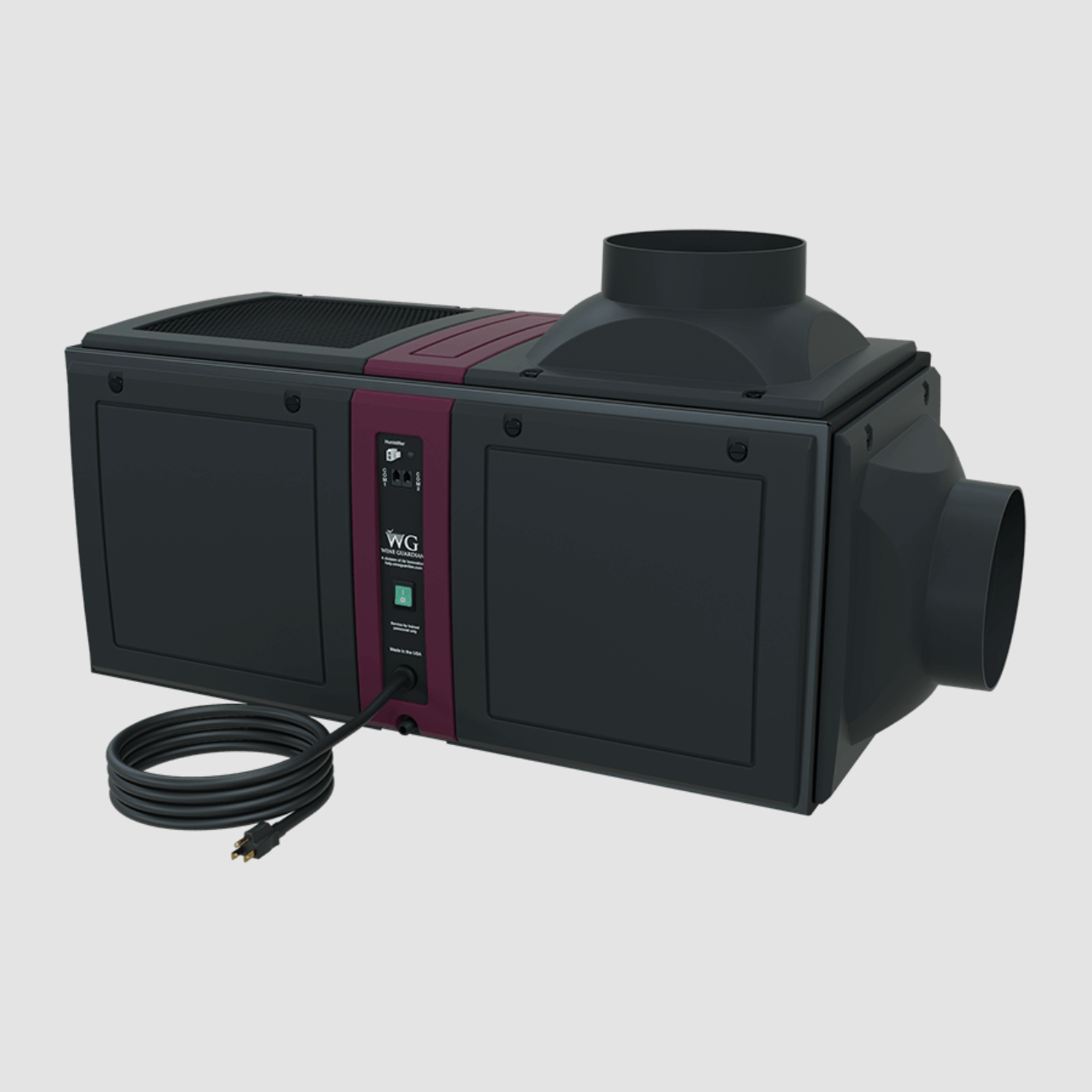

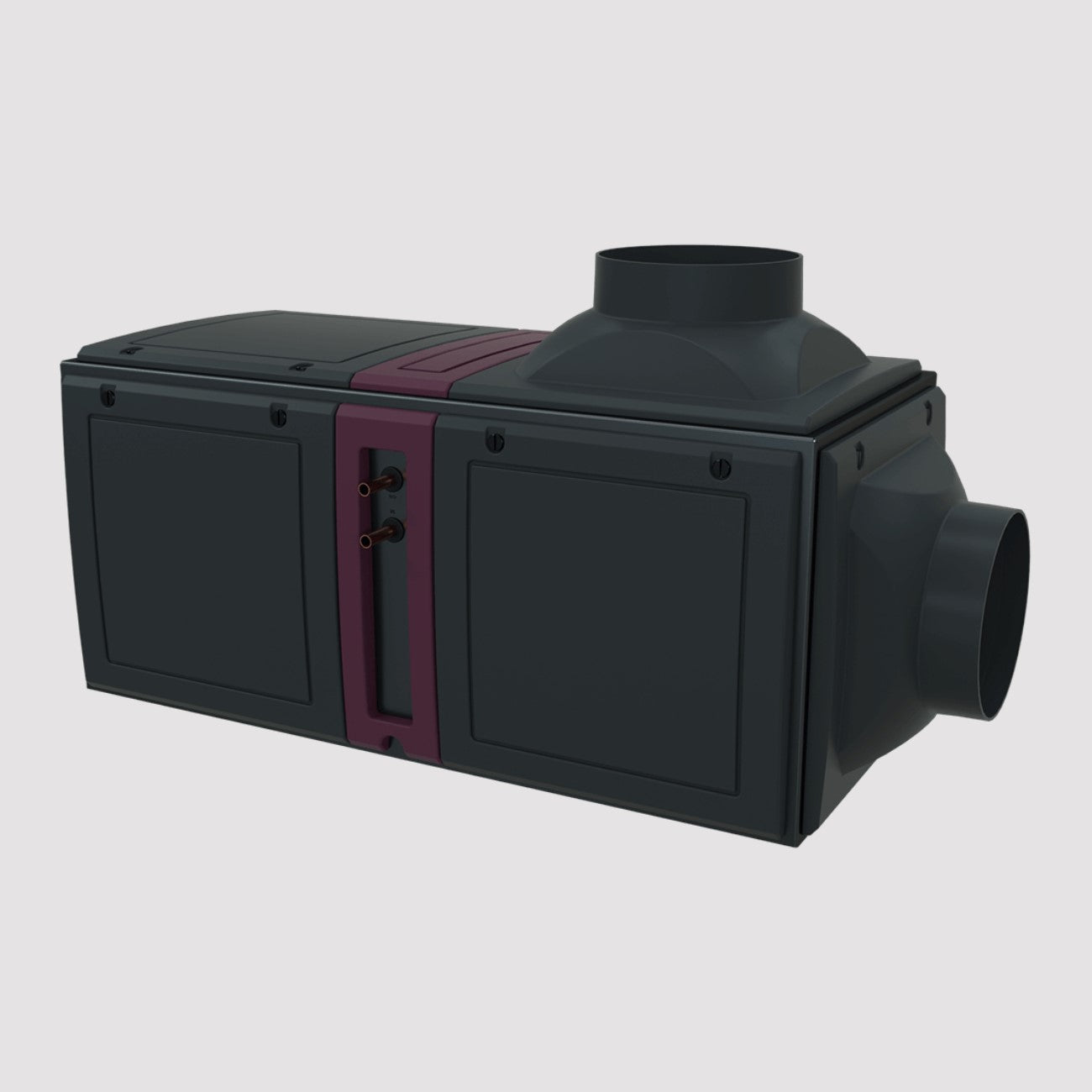

Wine Guardian D050 Ducted Wine Cellar Cooling Unit – Up to 3,000 ft³
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarThe D050 is a self-contained, ducted wine cellar cooling system designed for easy installation and maintenance in medium-sized residential and commercial applications while providing optimal environmental control. With a variety of capacities and options, including water-cooling, these fully-ducted units are capable of meeting the needs of virtually any wine preservation application.
The D050 system is available in a water-cooled configuration.
Product Details:
-
Fully Ducted Cooling Unit - these complete systems include the evaporator, fans, compressor, condenser, and controls in one unit
-
Cooling Capacity of 3000 ft3 (1/2 Ton)
-
110V / 20A dedicated circuit breaker required
-
Installation requires a licensed HVAC professional
-
Drain line is required
-
1 Supply & 1 Return collar included
-
Digital interface
-
Power cord included
-
Sleek and modern look to compliment any wine cellar design
-
Versatile with a wide range of accessories for enhanced functionality
-
Can control a broad range of wine storage conditions between 55°F(13°C) to 58°F(14°C).
Product Measurements:
-
22.5”W x 19”H x 41.5”L
-
125 lbs
A Platinum Warranty Option is Available
This includes coverage for the compressor, evaporator coil, and condenser coil.
Read more about the cooling unit warranty
Documents and Resources:
The Wine Guardian D050 Ducted is a ducted, split-system wine cellar cooling unit: the compressor and condenser install remotely while a ducted evaporator distributes conditioned air evenly through supply and return ductwork. This split-system wine cooler configuration is well suited to larger or architecturally complex wine rooms up to 3,000 ft³, where a self-contained wine cooling unit isn't practical, since the noisiest components sit outside the tasting or storage space entirely. As a dedicated ducted wine cellar cooling unit, it gives builders and collectors a flexible way to hold precise temperature and humidity across a demanding cellar design.
