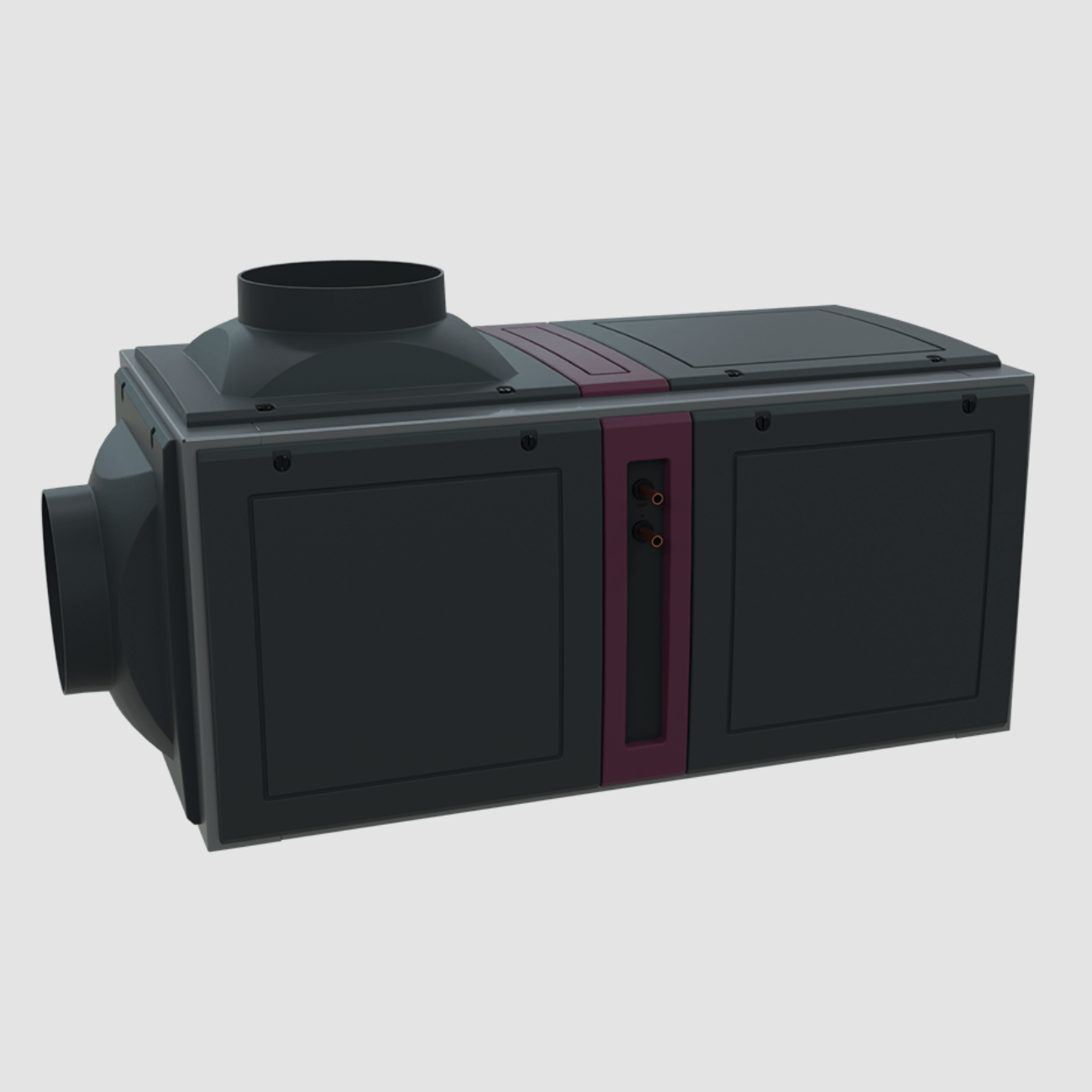

Wine Guardian D050WC Ducted Water-Cooled Wine Cellar Cooling Unit – 3,000 ft³
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarThe D050WC wine cellar cooling unit is designed for medium-sized residential and commercial environments. Available with an optional integral water-cooled condensing coil and water-regulating valve, this system is perfectly suited for geothermal, cooling tower, and lake water applications. Water-cooled systems like the D050 offer the advantage of not needing to exhaust heat, making them more efficient. However, they do require a consistent year-round water supply to operate effectively.
Product Details:
-
Fully Ducted Cooling Unit - these complete systems include the evaporator, fans, compressor, condenser, and controls in one unit
-
Cooling Capacity: 2700 – 6320 BTU
-
Volume: 650 – 3000 ft³
-
Electrical: 115/1/60
-
Installation requires a licensed HVAC professional
-
Integral water regulating valve for efficient system operation
-
Two lines are required for the water cooled units (water in/out).
-
Accepts water temperatures as cold as 45°F (7°C) and as warm as 85°F (29°C)
-
Water connection points on the side, allowing for convenient and easy access
-
Versatile with a wide range of accessories for enhanced functionality
-
Features a fully insulated cabinet and duct collars, designed to offer robust protection in the challenging environments
Product Measurements:
-
22.5”W x 19”H x 41.5”L
-
125 lbs
Note: If you plan to use the domestic water supply, it is recommended that you first consult with your local authority to ensure that there are no intervening water-use restrictions.
A Platinum Warranty Option is Available
This includes coverage for the compressor, evaporator coil, and condenser coil.
Read more about the cooling unit warranty
Documents and Resources:
The Wine Guardian D050WC is a water-cooled, ducted wine cellar cooling unit that uses a water-cooled condenser in place of an outdoor air-cooled condensing unit — a practical choice for interior cellars, high-rise installations, or any wine cellar refrigeration system where venting condenser air outside isn't feasible, for cellars up to 3,000 ft³. This water-cooled configuration lets the unit run efficiently in tight mechanical spaces while still functioning as a fully ducted wine cellar cooling system built for serious thermal loads.
