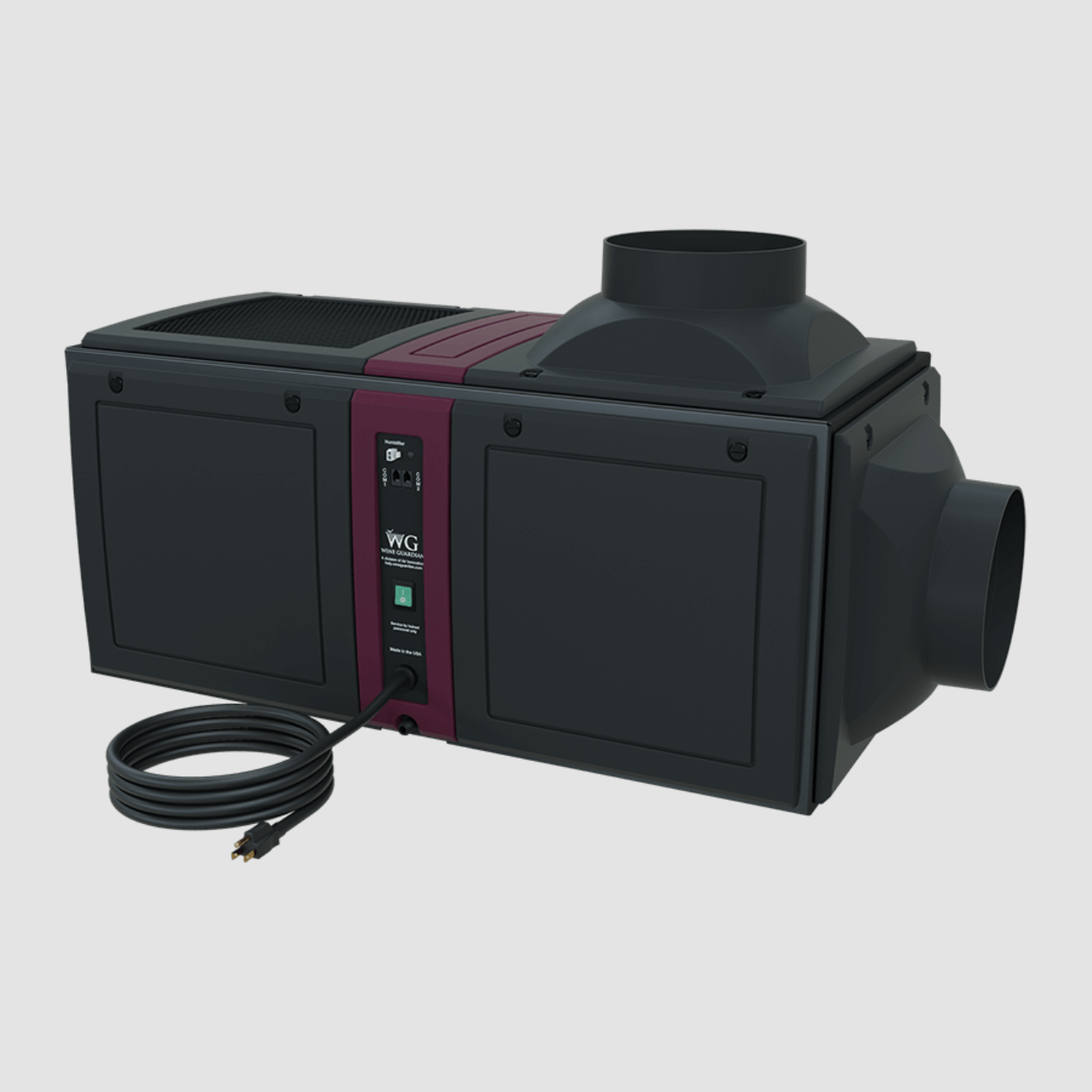

Wine Guardian D200WC Ducted Water-Cooled Wine Cellar Cooling Unit – 7,000 ft³
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarThe D200WC model is a fully ducted wine cellar cooling unit, designed for large residential and commercial settings where precise climate control is essential. Water-cooled wine cooling units are ideal for geothermal, cooling tower and lake water applications. Those systems provide versatile installation options, accommodating inlet water temperatures ranging from as cold as 45°F (7°C) to as warm as 85°F (29°C). These units are equipped with high-static pressure fans, making them suitable for use with extended-length ductwork. However, they do require a consistent year-round water supply to operate effectively.
Product Details:
-
Fully Ducted Cooling Unit - these complete systems include the evaporator, fans, compressor, condenser, and controls in one unit
-
Capacity: 8000 – 15680 BTU
-
Volume: 1500 – 7000 ft³
-
Electrical: 208-230/1/60
-
Installation requires a licensed HVAC professional
-
Integral water regulating valve for efficient system operation
-
Two lines are required for the water cooled units (water in/out).
-
Accepts water temperatures as cold as 45°F (7°C) and as warm as 85°F (29°C)
-

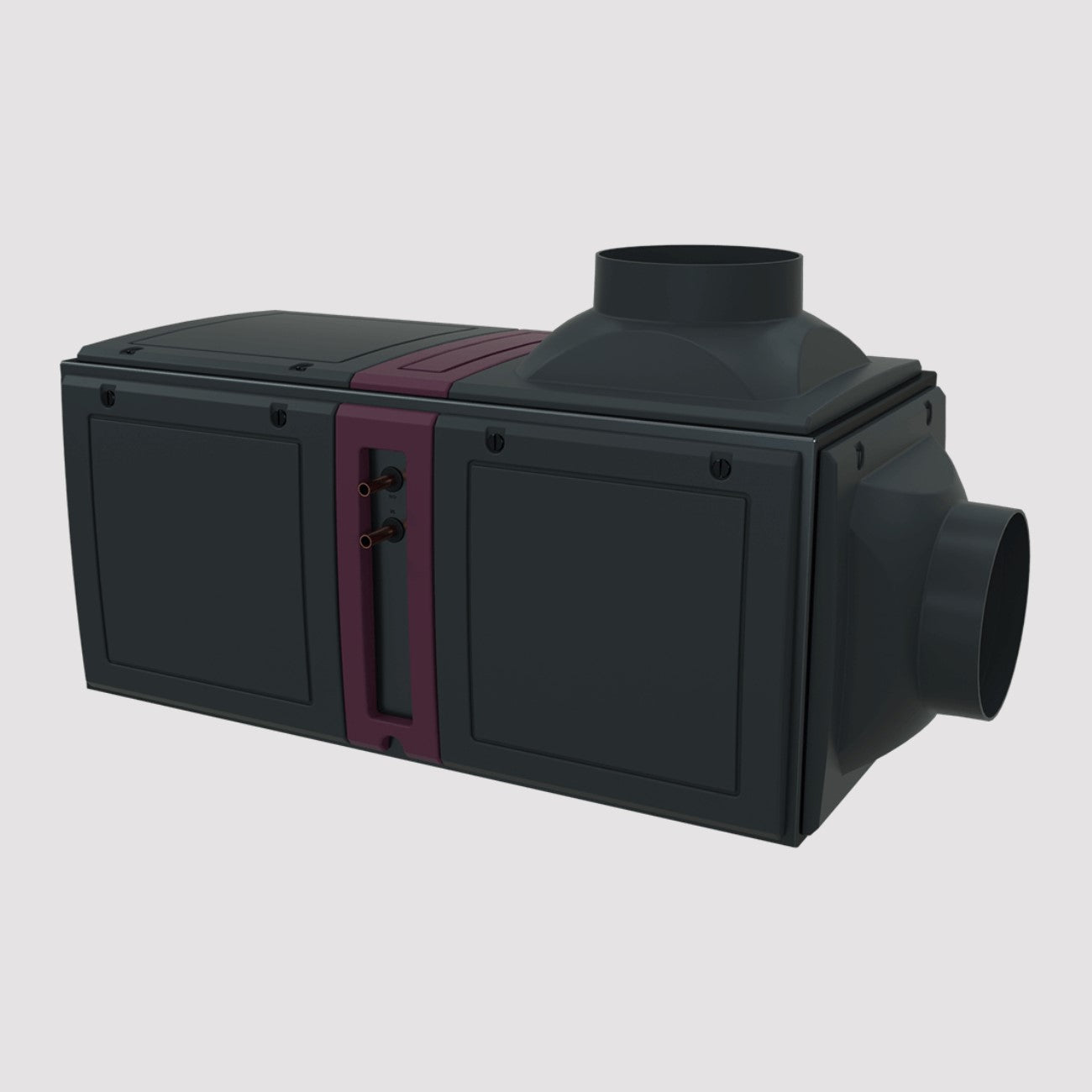

Water connection points on the side, allowing for convenient and easy access
-
Versatile with a wide range of accessories for enhanced functionality
-
Features a fully insulated cabinet and duct collars, designed to offer robust protection in the challenging environments
-
208-230V / 20A dedicated circuit breaker required
Product Measurements:
-
22.5”W x 19”H x 41.5”L
-
206 lbs
Note: If you plan to use the domestic water supply, it is recommended that you first consult with your local authority to ensure that there are no intervening water-use restrictions.
A Platinum Warranty Option is Available
This includes coverage for the compressor, evaporator coil, and condenser coil.
Read more about the cooling unit warranty
Documents and Resources:
The Wine Guardian D200WC is a water-cooled, ducted wine cellar cooling unit that uses a water-cooled condenser in place of an outdoor air-cooled condensing unit — a practical choice for interior cellars, high-rise installations, or any wine cellar refrigeration system where venting condenser air outside isn't feasible, for cellars up to 7,000 ft³. This water-cooled configuration lets the unit run efficiently in tight mechanical spaces while still functioning as a fully ducted wine cellar cooling system built for serious thermal loads.
