Wine Guardian DS025 Ducted Split Wine Cellar Cooling Unit – 2000 ft3 (1/4 Ton)

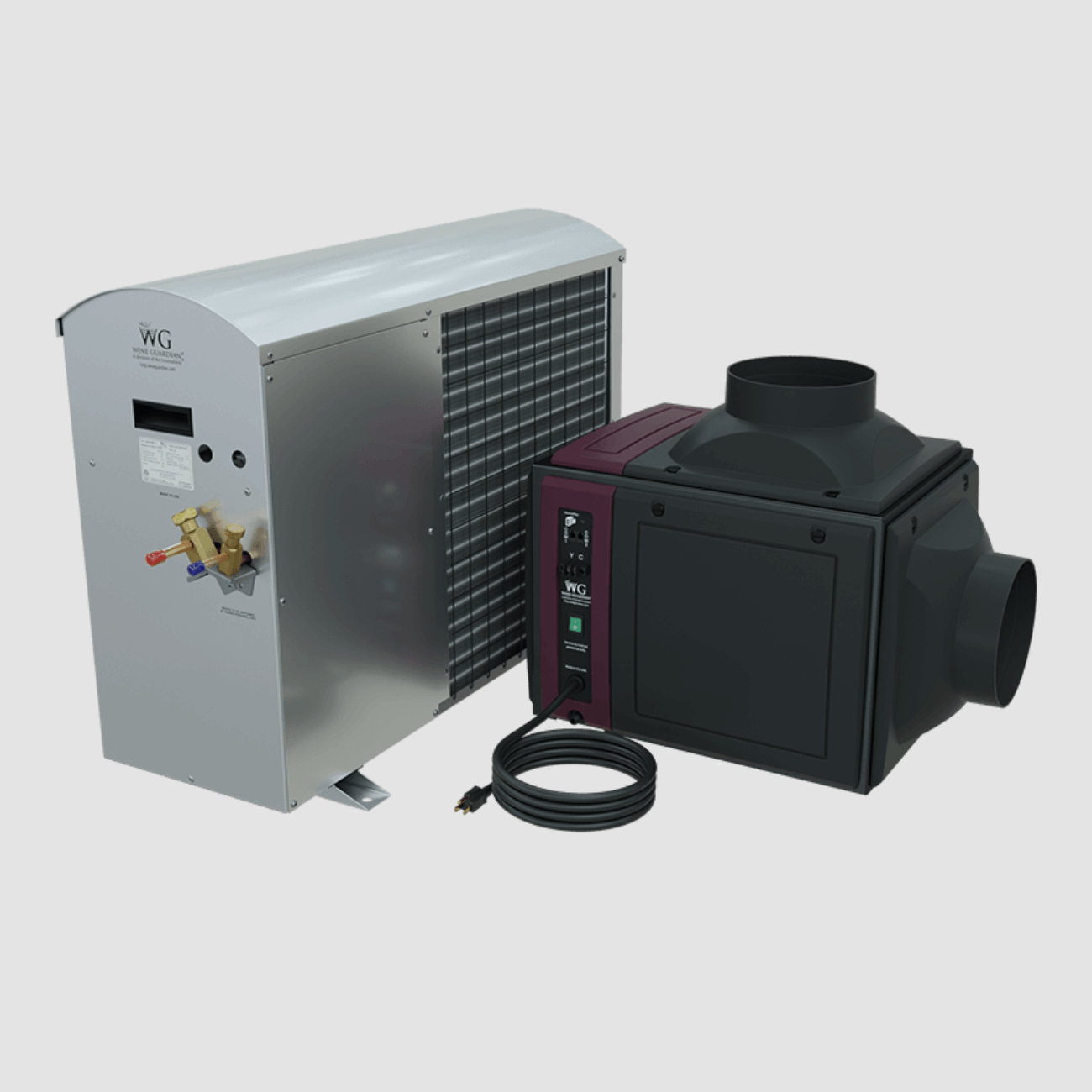

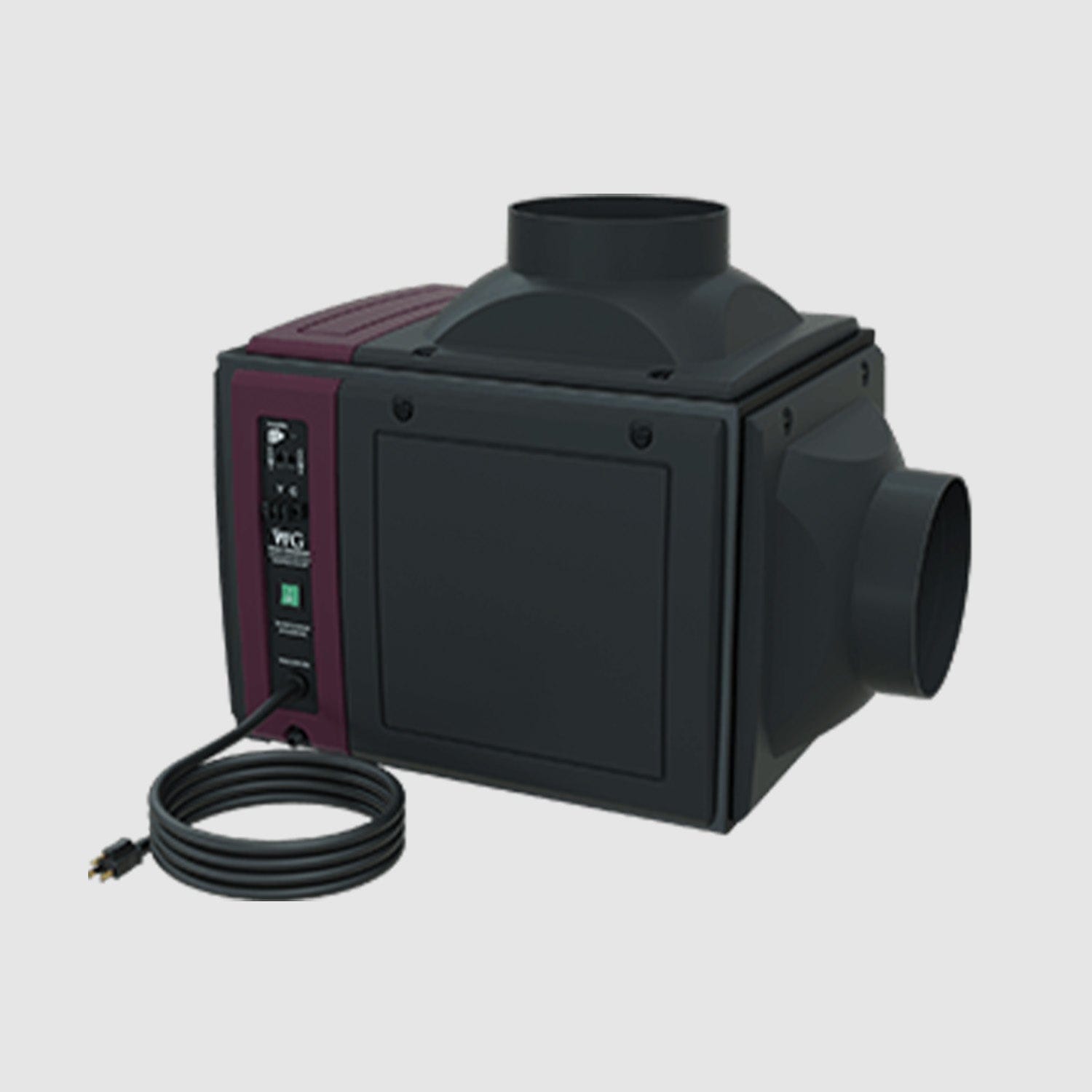

The DS025 split wine cellar air conditioner, featuring a ductable fan-coil, is perfectly suited for small residential and commercial settings. Its effectiveness varies with the specifics of usage and room construction. Installation of this system requires a qualified contractor to ensure optimal performance. The DS025 comes with a separate outdoor condensing unit, meticulously designed and manufactured by Wine Guardian to pair seamlessly with the evaporator, providing efficient and reliable climate control for your wine storage. The unit has a max capacity of 3,400 BTU/H (1.055 Kilowatt).
Product Details:
-
Ducted Split wine cellar cooling unit
-
Cooling capacity of 2000 ft3 (1/4 Ton)
-
Electrical: 115/1/60; 208-230/1/60 (condenser)
-
Installation requires a licensed HVAC professional
-
A drain line is required
-
1 Supply & 1 Return collar included
-

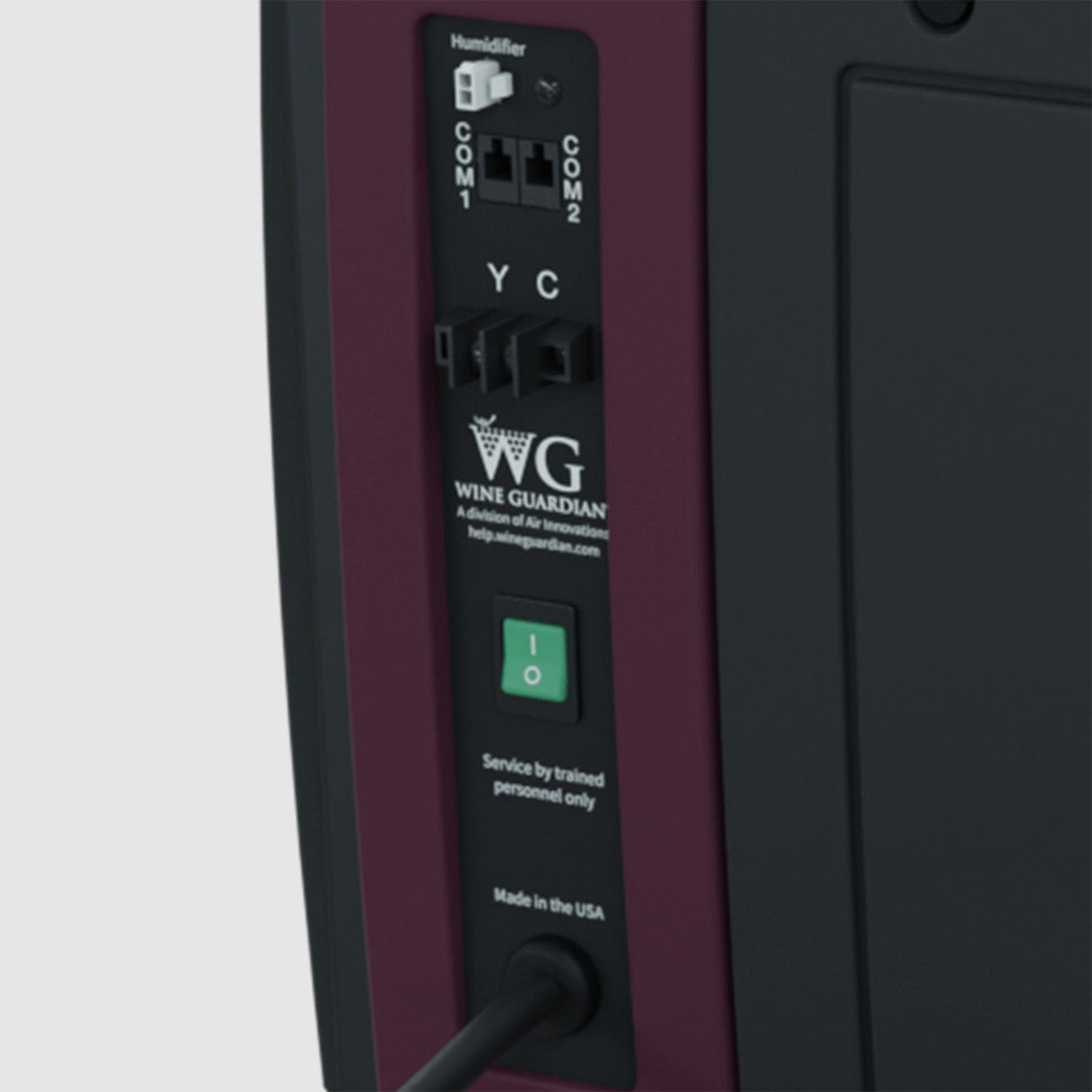

Digital interface
-
Power cord
-
Quiet and vibration-free system
-
Commercial-grade, corrosion-resistant components
-
Multi-panel design with captive quarter-turn fasteners
-
Efficient insulation across the system and double wall duct collars
Product Measurements:
-
Length : 21.43" (evaporator); 34" (condenser)
-
Width: 16.6" (evaporator); 12.3" (condenser)
-
Height: 15.56" (evaporator); 26.07" (condenser)
-
Weight : 35 lbs (evaporator); 75 lbs (condenser)
A Platinum Warranty option is Available
This includes coverage for the compressor, evaporator coil, and condenser coil.
Documents and Resources:
As a ducted wine cellar cooling unit, the Wine Guardian DS025 Ducted Split separates the condensing unit from the evaporator, routing conditioned air through ductwork so cooling stays even from corner to corner in wine rooms up to 2,000 ft³. This split system wine cooler approach is a common choice when the cellar's layout or size rules out a self-contained unit, letting installers place the compressor well away from the wine itself. It's engineered for collectors who need a ducted split wine cellar cooling unit capable of serious thermal load management.
