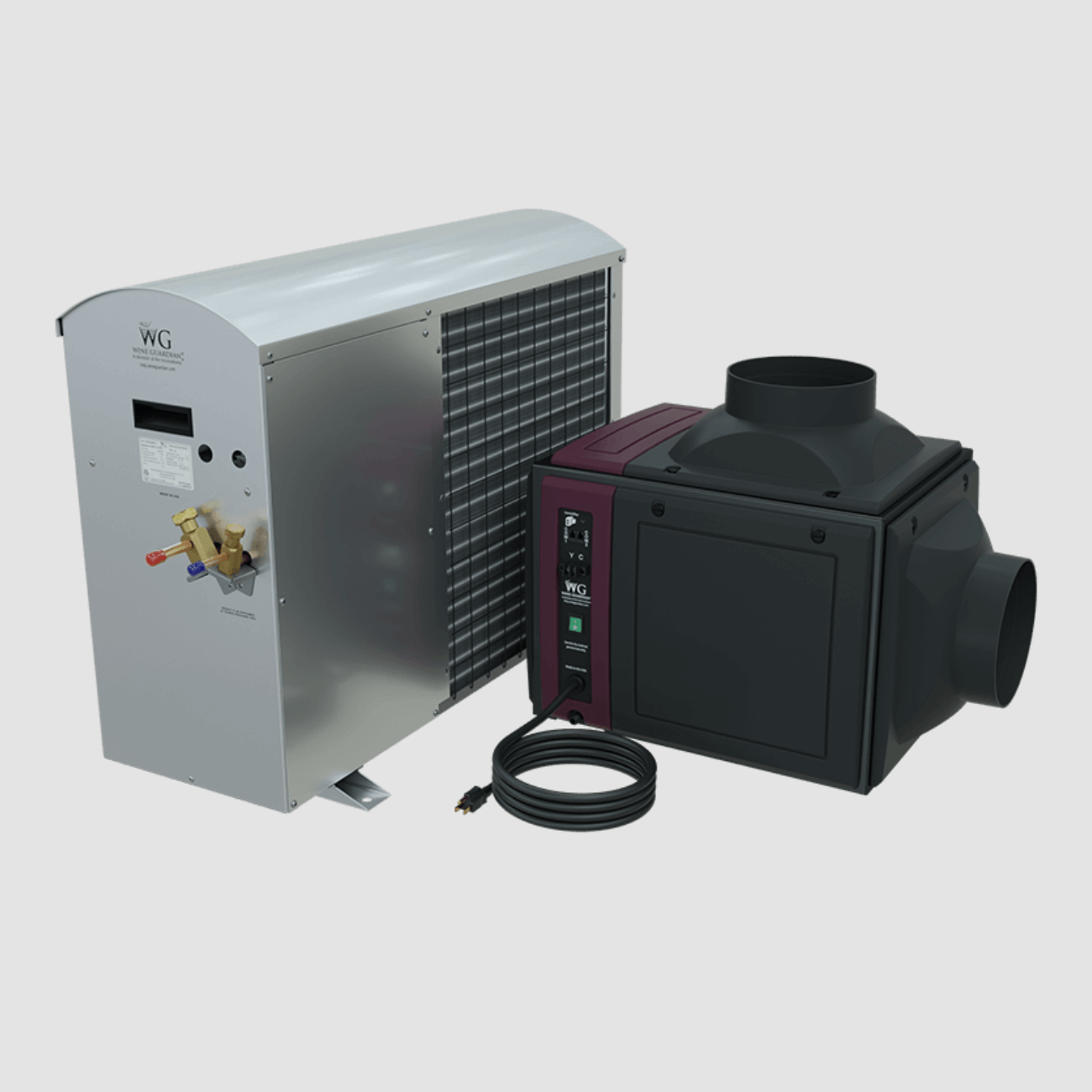

Wine Guardian DS050 Ducted Split Wine Cellar Cooling Unit
The DS050 Split Wine Cellar Air Conditioning System features a ductable fan-coil, making it ideal for medium-sized residential and commercial wine rooms. This system requires professional contractor installation, ensuring optimal performance and efficiency in maintaining the perfect climate for wine storage. The extremely quiet and virtually vibration-free system offers maximum flexibility in system location and cellar designs. This makes it ideal for: cellars that have no space to install a self-contained unit; for applications where condenser air is difficult to exhaust; and for longer duct runs. The unit has a max capacity of 6,458 BTU/H.
Product Details:
-
Ducted Split wine cellar cooling unit
-
Cooling capacity of 3000 ft3 (1/2 Ton)
-
Installation requires a licensed HVAC professional
-
A drain line is required
-
1 Supply & 1 Return collar included
-
Electrical: 115/1/60; 208-230/1/60 (condenser)
-
Digital interface
-
Power cord
-
Quiet and vibration-free system
-
Commercial-grade, corrosion-resistant components
-
Multi-panel design with captive quarter-turn fasteners
-
Efficient insulation across the system and double wall duct collars
Product Measurements:
-
Length : 23.8" (evaporator); 34" (condenser)
-
Width: 25" (evaporator); 12.3" (condenser)
-
Height: 19.7" (evaporator); 26.07" (condenser)
-
Weight : 54 lbs (evaporator); 76 lbs (condenser)
A Platinum Warranty Option is Available
This includes coverage for the compressor, evaporator coil, and condenser coil.
Documents and Resources:
As a ducted wine cellar cooling unit, the Wine Guardian DS050 Ducted Split separates the condensing unit from the evaporator, routing conditioned air through ductwork so cooling stays even from corner to corner in wine rooms up to 3,000 ft³. This split system wine cooler approach is a common choice when the cellar's layout or size rules out a self-contained unit, letting installers place the compressor well away from the wine itself. It's engineered for collectors who need a ducted split wine cellar cooling unit capable of serious thermal load management.
