Wine Guardian DS088 Ducted Split Wine Cellar Cooling Unit – 6000 ft³
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.

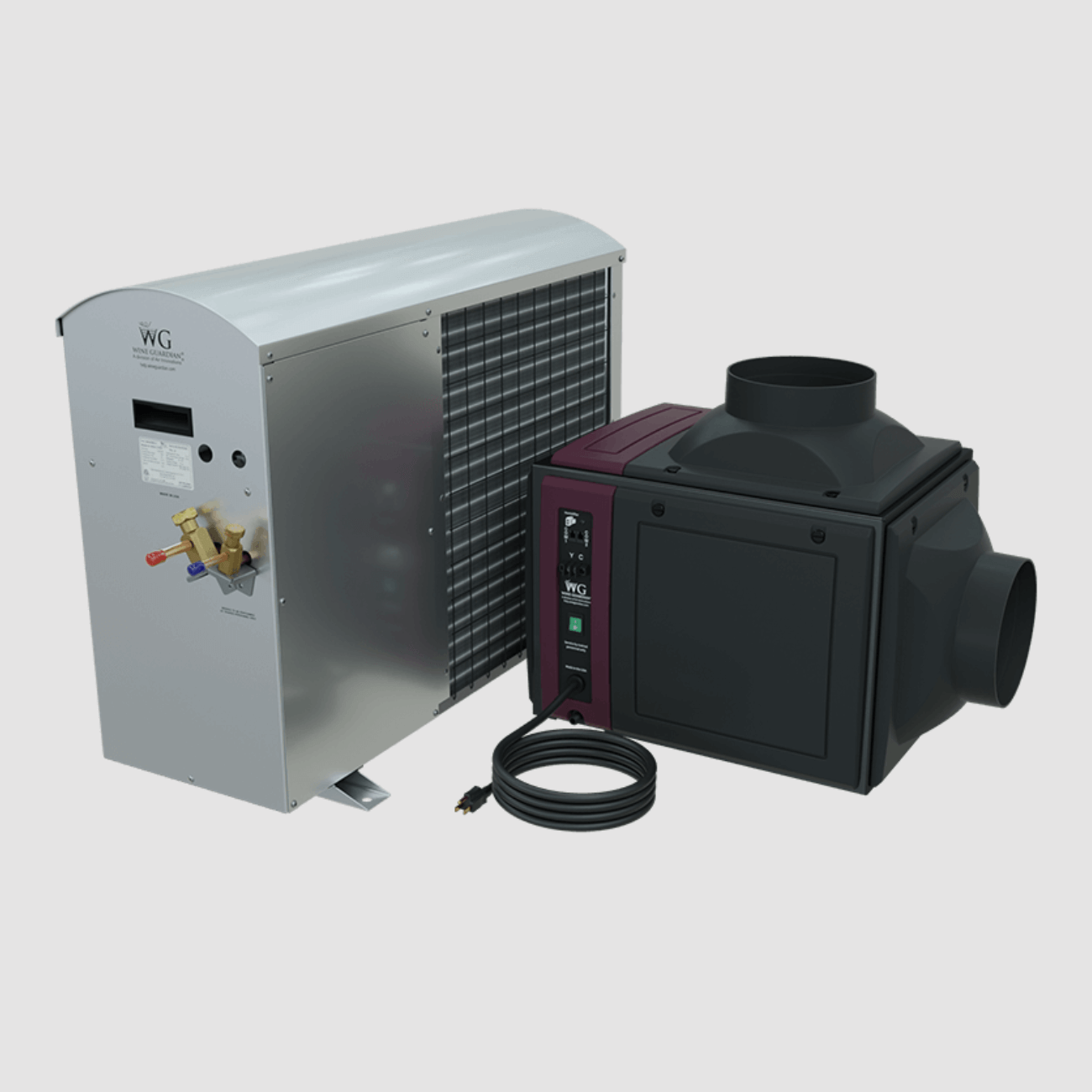

Help me size my cellarThe DS088 ducted split wine cooling unit features a ductable fan-coil, making it an excellent choice for medium to large residential and commercial wine rooms and cellars. This unit is highly recommended for situations where a self-contained system cannot be accommodated due to space limitations, where exhausting condenser air is challenging, or where longer duct runs are necessary. With a robust cooling capacity of 9,600 BTU/H (2.81 Kilowatts), the DS088 is not only extremely quiet and virtually vibration-free but also offers unparalleled flexibility in system placement and cellar design. Please note that professional contractor installation is required.
Product Details:
-
Ducted Split wine cellar cooling unit
-
Cooling Capacity of 6000 ft3 (1 Ton)
-
Installation requires a licensed HVAC professional
-
A drain line is required
-
1 Supply & 1 Return collar included
-
Electrical: 115/1/60; 208-230/1/60 (condenser)
-
Digital interface
-
Power cord
-
Quiet and vibration-free system
-
Commercial-grade, corrosion-resistant components
-
Multi-panel design with captive quarter-turn fasteners
-
Efficient insulation across the system and double wall duct collars
Product Measurements:
-
Length : 23.8" (evaporator); 34" (condenser)
-
Width: 25" (evaporator); 12.3" (condenser)
-
Height: 19.7" (evaporator); 26.07" (condenser)
-
Weight : 58 lbs (evaporator); 60 lbs (condenser)
A Platinum Warranty Option is Available
This includes coverage for the compressor, evaporator coil, and condenser coil.
Documents and Resources:
The Wine Guardian DS088 Ducted Split is a ducted, split-system wine cellar cooling unit: the compressor and condenser install remotely while a ducted evaporator distributes conditioned air evenly through supply and return ductwork. This split-system wine cooler configuration is well suited to larger or architecturally complex wine rooms up to 6,000 ft³, where a self-contained wine cooling unit isn't practical, since the noisiest components sit outside the tasting or storage space entirely. As a dedicated ducted wine cellar cooling unit, it gives builders and collectors a flexible way to hold precise temperature and humidity across a demanding cellar design.
