Wine Guardian DS200 Ducted Split Wine Cellar Cooling Unit – 8,500 ft³
Not sure this unit fits your cellar? Send us your room size and insulation details and our team will confirm the right model before you order.
Help me size my cellarThe DS200 split wine cooling unit, featuring a ductable fan-coil, is ideal for large residential and commercial wine storage needs. Renowned for its exceptionally quiet operation and minimal vibration, this system provides unparalleled flexibility in placement and cellar design. Capable of maintaining precise wine storage temperatures from 55°F (13°C) to 58°F (14°C), it can also be adjusted down to 45°F (7°C) for serving purposes with an optional configuration. This versatile and efficient system ensures optimal conditions for preserving and enhancing your wine collection. Contractor installation is required. The unit has a max capacity of 14,900 BTU/h (3.81 Kilowatts).
Product Details:
-

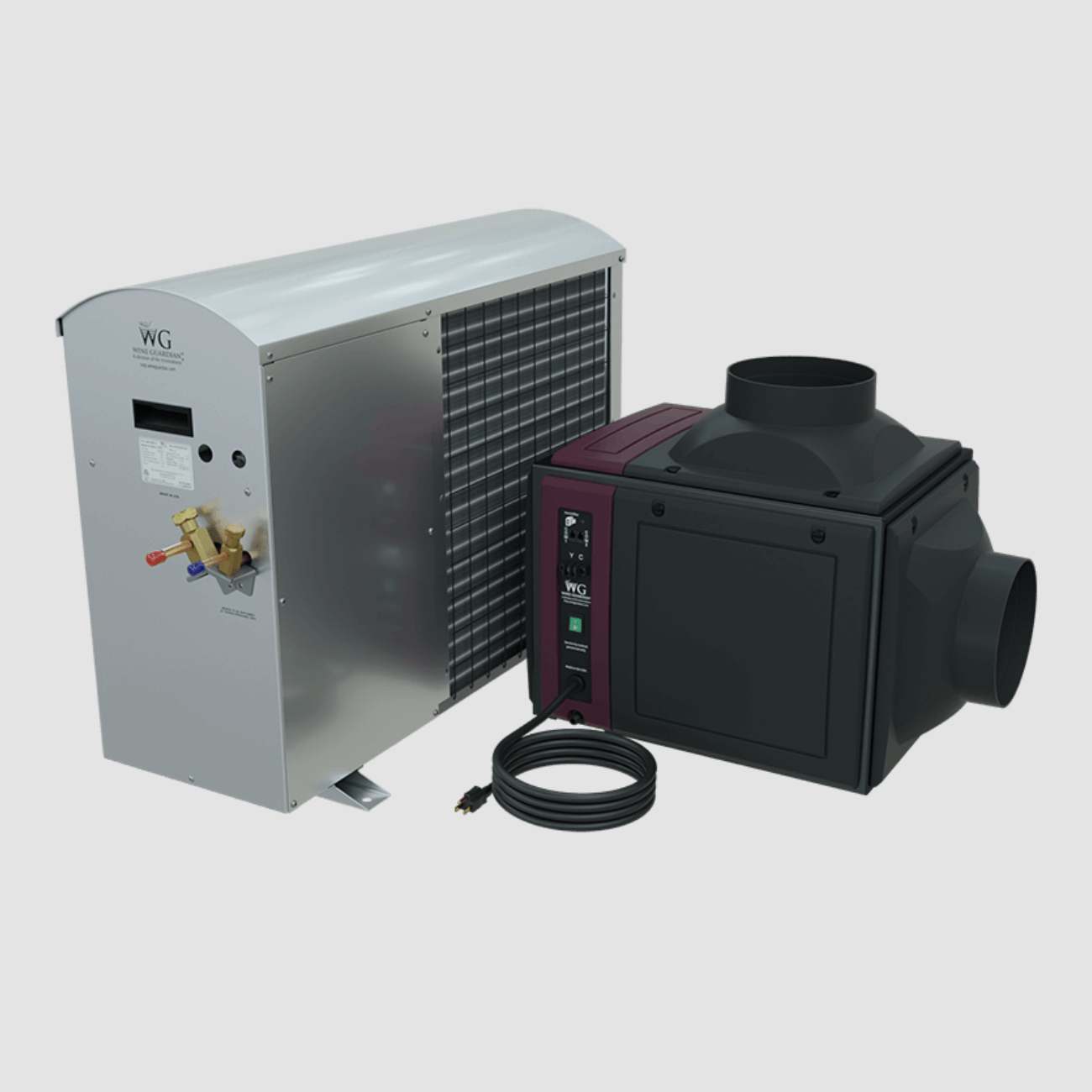

Ducted Split wine cellar cooling unit for large residential and commercial wine cellars
-
Cooling Capacity of 8500 ft3 (2 Ton)
-
Installation requires a licensed HVAC professional
-
A drain line is required
-
1 Supply & 1 Return collar included
-
Electrical: 115/1/60; 208-230/1/60 (condenser)
-
Digital interface
-
Power cord
-
Quiet and vibration-free operation
-
Commercial-grade, corrosion-resistant components
-
Multi-panel design with captive quarter-turn fasteners
-
Efficient insulation across the system and double wall duct collars
Product Measurements:
-
Length : 23.8" (evaporator); 34" (condenser)
-
Width: 25" (evaporator); 12.3" (condenser)
-
Height: 19.7" (evaporator); 26.07" (condenser)
- Weight : 69 lbs (evaporator); 120 lbs (condenser)
A Platinum Warranty Option is Available
This includes coverage for the compressor, evaporator coil, and condenser coil.
Documents and Resources:
As a ducted wine cellar cooling unit, the Wine Guardian DS200 Ducted Split separates the condensing unit from the evaporator, routing conditioned air through ductwork so cooling stays even from corner to corner in wine rooms up to 8,500 ft³. This split system wine cooler approach is a common choice when the cellar's layout or size rules out a self-contained unit, letting installers place the compressor well away from the wine itself. It's engineered for collectors who need a ducted split wine cellar cooling unit capable of serious thermal load management.
Not sure if a ducted split is the right configuration for your cellar? See our 2026 Wine Cellar Cooling Unit Buyer's Guide for a full breakdown of sizing and system types.
